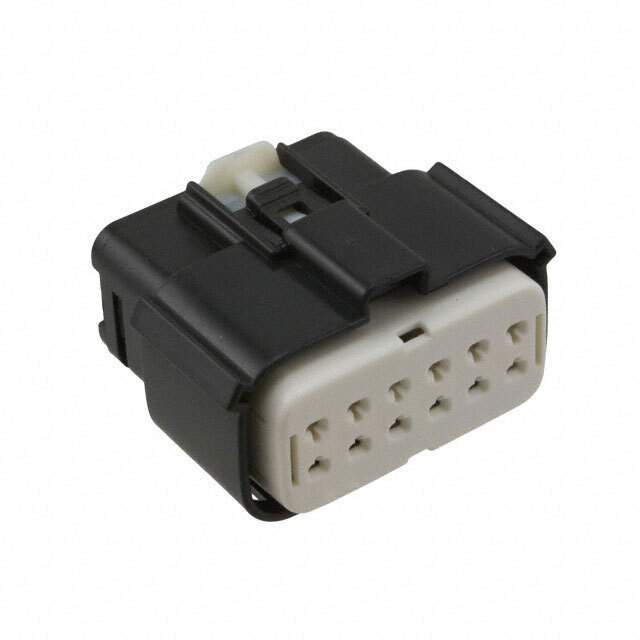

Same model may have multiple batches, images only for reference.

0194180026

Name: 0194180026
Brand: Molex, LLC
SKU: 1380603
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	0194180026
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 12POS 5.84MM / 12 Rectangular Connectors - Housings Receptacle 0.230" (5.84mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Mfr	Molex, LLC
Series	MX150L 19418
Package	Tray
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	12
Pitch	0.230" (5.84mm)
Number of Rows	2
Row Spacing	0.236" (6.00mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Holder
Color	-
Features	Connector Position Assurance (CPA), IP67
Insulation Material	Polybutylene Terephthalate (PBT), Polyester
Temperature Range - Operating	-40°C ~ 120°C
Note	Contacts Not Included
Base Product Number	019418
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.8000
Standard Package	72 pcs
Win Source Part Number	1380603-0194180026
Ultra Librarian 3D Model	Ultra Librarian 0194180026 CAD Model

Description

The MX150L 19418 series rectangular connector housing from Molex, LLC is a high-quality housing for your electronic applications.

Positions: 12
Pitch: 0.230" (5.84mm)
Features: Connector Position Assurance (CPA), IP67 Rated
Connector Type: Receptacle
Contact Gender: Female Socket
Rows: 2
Row Spacing: 0.236" (6.00mm)
Fastening Type: Latch Holder
Package: Tray
Standard Package Quantity: 72 pcs
Material: Polybutylene Terephthalate (PBT) and Polyester
Applications: Automotive, Industrial, and Consumer Electronics
Operating Temperature: -40°C to 120°C
