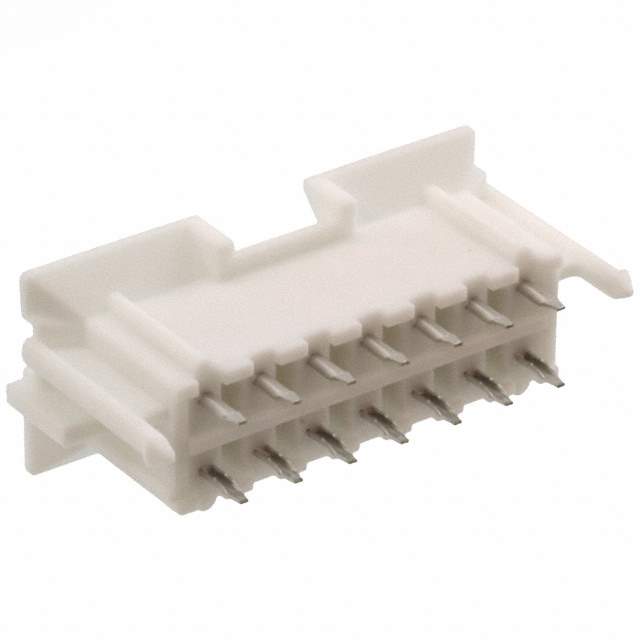

0015286142

Part No 0015286142
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 14POS 4.2MM / Connector Header Through Hole 14 position 0.165" (4.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr Molex, LLC
Series Mini-Fit BMI 42440
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Number of Positions 14
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating -
Contact Length - Post 0.138" (3.50mm)
Overall Contact Length -
Insulation Height 0.555" (14.10mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Features Blind Mating, Board Lock
Temperature Range - Operating -
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) -
Voltage Rating -
Mated Stacking Heights -
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose, Industrial, Medical, Telecommunications
Base Product Number 001528
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 320 pcs
Win Source Part Number 1380531-0015286142
Ultra Librarian 3D Model Ultra Librarian 0015286142 CAD Model

Description

The Mini-Fit BMI 42440 is a rectangular connector header with male pins, manufactured by Molex, LLC.

  • Positions: 14
  • Features: Blind Mating and Board Lock
  • Termination: Solder
  • Fastening Type: Latch Holder
  • Package: Tray of 320 pieces
  • Contact Material: Brass
  • Contact Finish: Gold
  • Contact Finish Thickness (Mating): 30.0μin
  • Contact Finish Thickness (Post): 100.0μin
  • Insulation Material: Polyamide (PA66) and Nylon 6/6
  • Flammability Rating: UL94 V-0
  • Applications: General Purpose, Industrial, Medical, and Telecommunications
  • Moisture Sensitivity Level: 1
