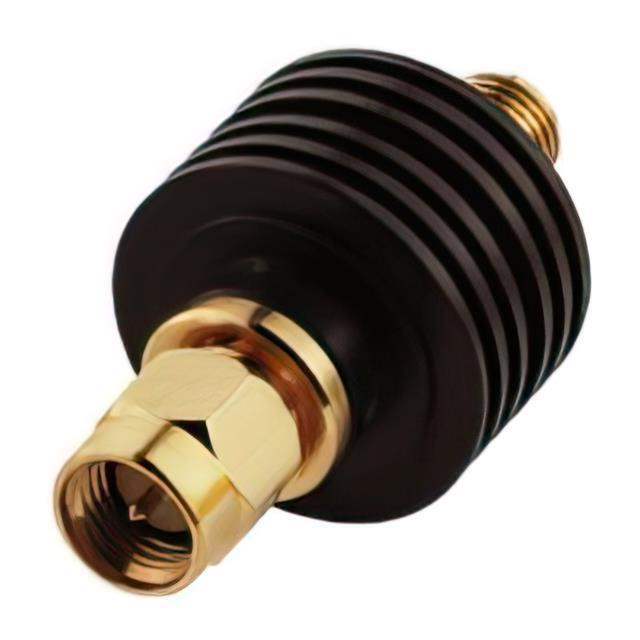

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1209759-VAT-20W2+
Manufacturer Mini-Circuits
Category RF and Wireless-Attenuators
Package Box
Product Status Active
Attenuation Value 20dB
Frequency Range 0 Hz ~ 6 GHz
Impedance 50 Ohms
Package / Case SMA In-Line Module
Ultra Librarian 3D Model Ultra Librarian VAT-20W2+ CAD Model

Description

Features<br /> • wideband coverage, DC to 6000 MHz<br /> • 2 watt rating<br /> • rugged unibody construction<br /> • off-the-shelf availability • very low cos
