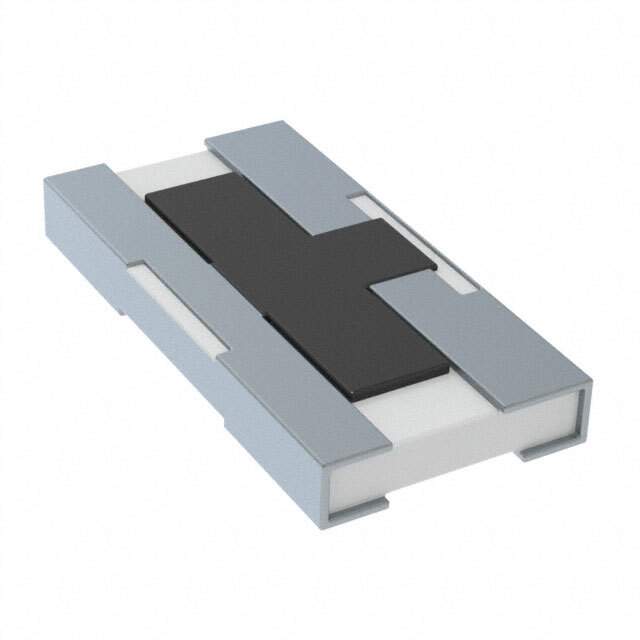

The PAT1632-C-10DB-T is a precision thin film chip attenuator manufactured by Susumu. This attenuator is designed for high-frequency applications where accurate attenuation, excellent return loss, and stable performance over temperature are critical. Its compact size and robust construction make it suitable for a variety of RF and microwave circuits.

Applications:

• Mobile communication systems: Used in base stations and mobile devices to control signal levels.
• Wireless LAN (WLAN): Employed in routers and access points for signal conditioning.
• Satellite communication: Integrated into transceivers for signal attenuation.
• Test and measurement equipment: Utilized in spectrum analyzers, signal generators, and network analyzers for calibration and signal control.
• Radar systems: Applied in receiver front-ends to protect sensitive components from high-power signals.

Features:

• Precise attenuation: Offers a 10dB attenuation value with tight tolerance.
• Thin film technology: Provides excellent stability and reliability.
• Compact size: 1632 chip size allows for high-density mounting.
• High frequency performance: Suitable for applications up to several GHz.
• RoHS compliant: Environmentally friendly construction.

Benefits:

• Accurate signal control: Ensures precise signal levels in RF circuits.
• Stable performance: Maintains consistent attenuation over a wide temperature range.
• Space-saving design: Enables miniaturization of electronic devices.
• Reliable operation: Offers long-term stability in demanding environments.
• Reduced signal distortion: Minimizes unwanted reflections and signal degradation.

Additional Details:

The PAT1632-C-10DB-T attenuator utilizes thin film resistor technology to achieve its precise attenuation characteristics. The resistor element is precisely patterned and trimmed to ensure accurate resistance values and low parasitic inductance and capacitance. The attenuator is constructed on a ceramic substrate with wraparound terminations for reliable solder attachment. Key specifications include impedance of 50 ohms, power handling capability and operating temperature range. Susumu provides detailed datasheets with S-parameter data for accurate circuit simulations and design.
