Same model may have multiple batches, images only for reference.

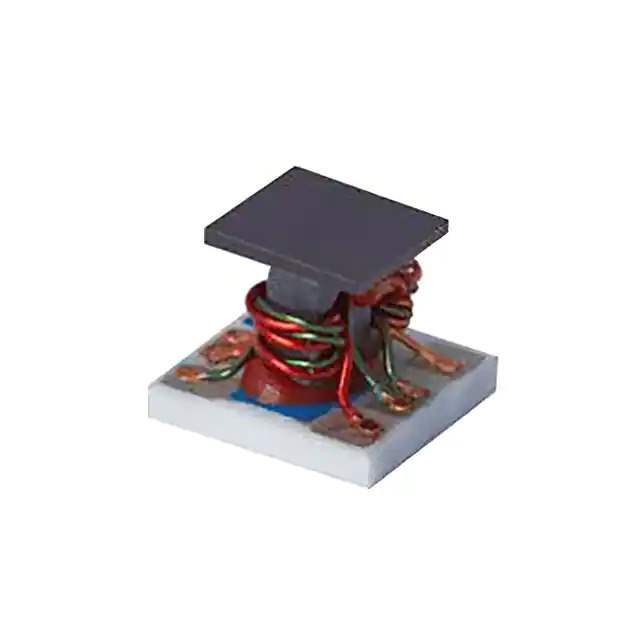

SBTC-2-10X+ Real Image
Same model may have multiple batches, images only for reference.

SBTC-2-10X+

Part No SBTC-2-10X+
Manufacturer Mini-Circuits
Catalog RF Power Dividers/Splitters
Description RF PWR DVDR 5MHZ-1GHZ 6SMD
Datasheet
SBTC-2-10X+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Power Dividers/Splitters
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Insertion Loss 0.5dB
Frequency 5 MHz ~ 1 GHz
Specifications Isolation (Min) 20dB, 5° Imbalance (Max)
Size / Dimension 0.150" L x 0.150" W x 0.150" H (3.81mm x 3.81mm x 3.81mm)
Package / Case 6-SMD, No Lead, 5 Leads
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 836765-SBTC-2-10X+
Ultra Librarian 3D Model Ultra Librarian SBTC-2-10X+ CAD Model

Description

The 836765-SBTC-2-10X+ is an RF power divider/splitter designed for use in RF and wireless applications.

  • Frequency Range: 5 MHz to 1 GHz
  • Isolation: 20dB
  • Imbalance: 5°
  • Insertion Loss: 0.5dB
  • Package Size: 0.150" L x 0.150" W x 0.150" H (3.81mm x 3.81mm x 3.81mm)
  • Package: 6-SMD, no-lead, 5-leads package
  • Manufacturer: Mini-Circuits
