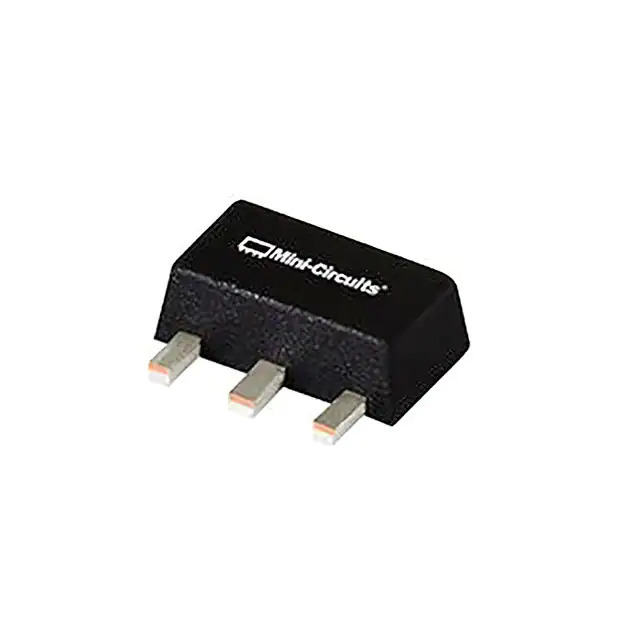

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Mini-Circuits
Series -
Package Tape & Reel
Product Status Active
Frequency 30MHz ~ 2GHz
P1dB 28.4dBm
Gain 19.5dB
Noise Figure 1.9dB
RF Type CATV, Cellular
Voltage - Supply 8V
Current - Supply 235mA
Test Frequency 1GHz
Mounting Type Surface Mount
Package / Case TO-243AA
Supplier Device Package SOT-89
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 1352990-PHA-23HLN+
Ultra Librarian 3D Model Ultra Librarian PHA-23HLN+ CAD Model

Description

The Mini-Circuits PHA-23HLN+ is an active RF amplifier designed for CATV and cellular applications.

  • Frequency: 30MHz ~ 2GHz
  • Package / Case: TO-243AA
  • Mounting Type: Surface Mount
  • Supplier Device Package: SOT-89
  • Voltage - Supply: 8V
  • Gain: 19.5dB
  • P1dB: 28.4dBm
  • Noise Figure: 1.9dB
  • Current - Supply: 235mA
