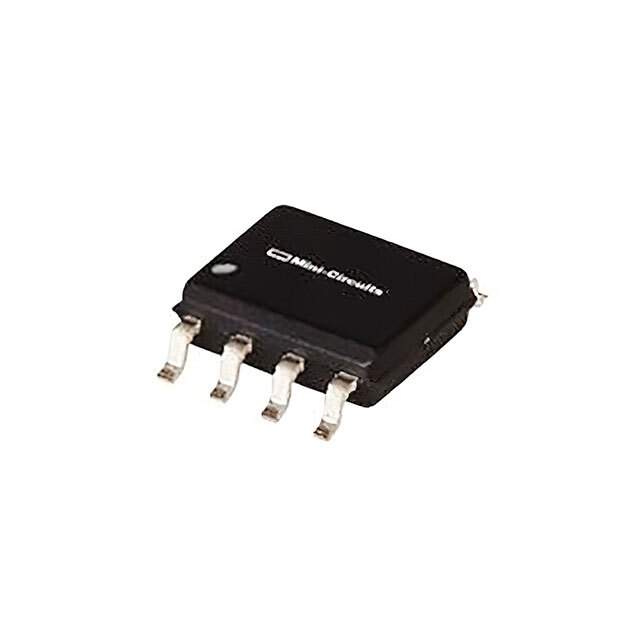

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Switches
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
RF Type Cellular, PCN
Topology Reflective
Circuit SPDT
Frequency Range 0Hz ~ 2GHz
Isolation 24dB
Insertion Loss 0.75dB
Test Frequency 2GHz
P1dB 25dBm
Impedance 50Ohm
Temperature Range - Operating -40°C ~ 85°C
Package / Case 8-SOIC (0.154", 3.90mm Width)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 244120-MSW-2-20+
Ultra Librarian 3D Model Ultra Librarian MSW-2-20+ CAD Model

Description

The 244120-MSW-2-20+ is an RF Switch designed for use in cellular and PCN applications.

  • Frequency Range: 0Hz to 2GHz
  • Insertion Loss: 0.75dB
  • Isolation: 24dB
  • Type: SPDT switch
  • Package: 8-SOIC
  • Packaging: Tape and reel
  • Manufacturer: Mini-Circuits
  • Status: Active product
