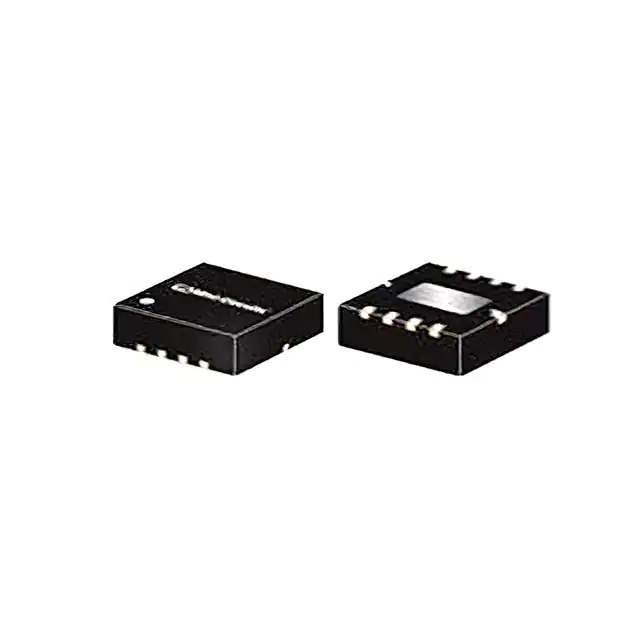

M3SWA-2-50DRB+

Name: M3SWA-2-50DRB+
Brand: Mini-Circuits
SKU: 924878
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	M3SWA-2-50DRB+
Manufacturer	Mini-Circuits
Catalog	RF Switches
Description	IC RF SWITCH SPDT 4.5GHZ 8DFN / RF Switch IC General Purpose SPDT 50Ohm 8-DFN (3.25x3.25)
Datasheet	M3SWA-2-50DRB+ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	RF and Wireless - RF Switches
Mfr	Mini-Circuits
Package	Tape & Reel
Product Status	Active
RF Type	General Purpose
Topology	Absorptive
Circuit	SPDT
Frequency Range	0Hz ~ 4.5GHz
Isolation	32dB
Insertion Loss	1.4dB
Test Frequency	4.5GHz
P1dB	25.4dBm
IIP3	46.5dBm
Impedance	50Ohm
Voltage - Supply	4.75V ~ 5.25V
Temperature Range - Operating	-55°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	8-TDFN Exposed Pad
Supplier Device Package	8-DFN (3.25x3.25)
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	924878-M3SWA-2-50DRB+
Ultra Librarian 3D Model	Ultra Librarian M3SWA-2-50DRB+ CAD Model

Description

The 924878-M3SWA-2-50DRB+ is an RF switch from Mini-Circuits.

Type: single-pole, double-throw (SPDT) switch
Frequency Range: 0Hz to 4.5GHz
Insertion Loss: 1.4dB
Isolation: 32dB
Voltage Supply: 4.75V to 5.25V
Mounting: surface mount mounting
Package Size: 8-TDFN Exposed Pad
Package: 8-DFN (3.25x3.25) package
Status: active product lineup
Standard Package: 1,000 pcs
Application: general purpose RF switching applications
