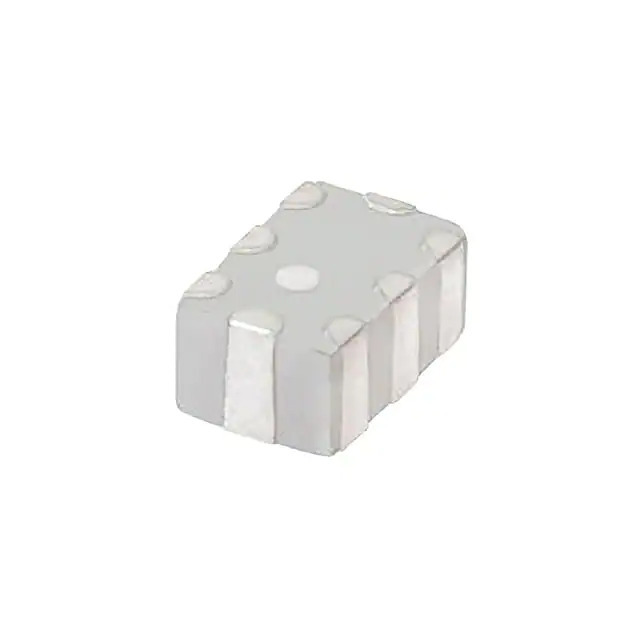

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - Ceramic Filters
Mfr Mini-Circuits
Series -
Package Tape & Reel
Product Status Active
Frequency 3.97GHz
Impedance 50Ohm
Insertion Loss 2.2dB
Filter Type Low Pass
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric), 8 PC Pad
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max) 0.037" (0.95mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1369433-LFCG-3500+
Ultra Librarian 3D Model Ultra Librarian LFCG-3500+ CAD Model

Description

The Mini-Circuits 1369433-LFCG-3500+ is a ceramic filter from.

  • Filter Type: Low Pass
  • Frequency Range: 3.97GHz
  • Mounting Type: Surface Mount
  • Package: 0805 (2012 Metric), 8 PC Pad
  • Insertion Loss: 2.2dB
  • Impedance: 50Ohm
  • Size: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Height: 0.037" (0.95mm)
  • Market Status: Active
