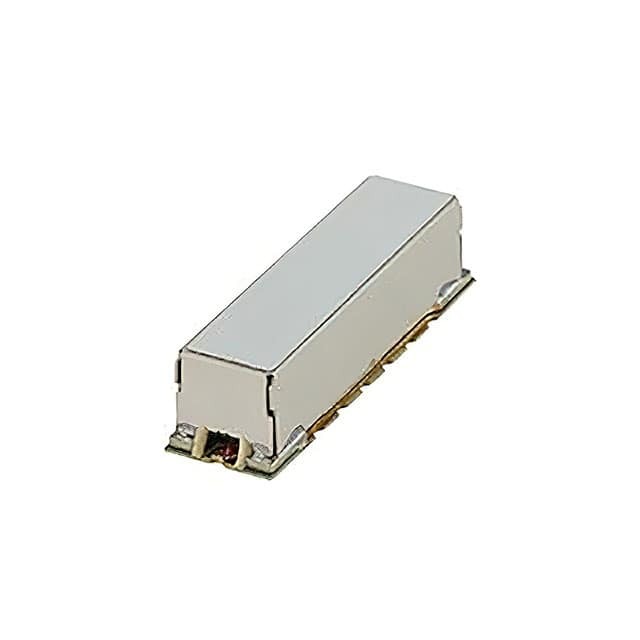

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - RF Filters
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency 490MHz Center
Bandwidth 200MHz
Filter Type Band Pass
Mounting Type Surface Mount
Package / Case 14-SMD Module
Size / Dimension 1.360" L x 0.365" W (34.54mm x 9.27mm)
Height (Max) 0.350" (8.89mm)
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 913404-BPF-A490+
Ultra Librarian 3D Model Ultra Librarian BPF-A490+ CAD Model

Description

The 913404-BPF-A490+ is a band pass RF filter from Mini-Circuits.

  • Center Frequency: 490MHz
  • Bandwidth: 200MHz
  • Mounting Type: Surface Mountable
  • Package: 14-SMD module
  • Height: 0.350 inches
  • Product Status: Active
