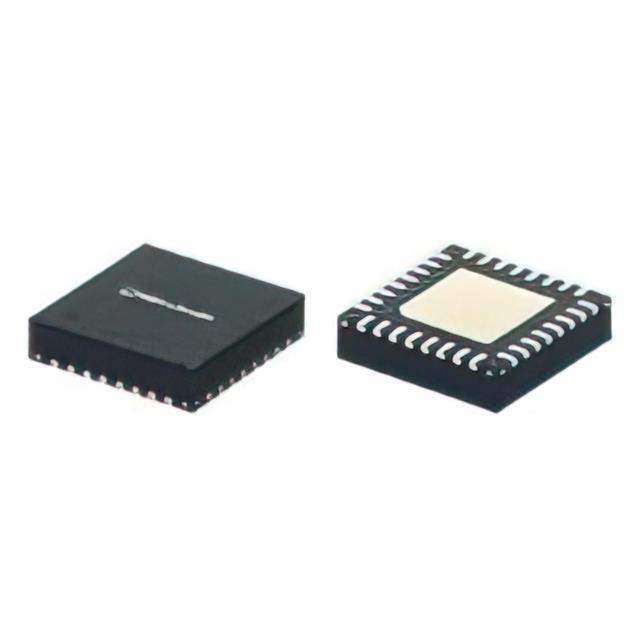

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Product Status Active
Frequency 2GHz ~ 30GHz
P1dB 16.4dBm
Gain 17.5dB
Noise Figure 4.2dB
RF Type 5G, Radar
Voltage - Supply 4.75V ~ 5.25V
Current - Supply 65mA
Test Frequency 2GHz
Grade -
Mounting Type Surface Mount
Package / Case 32-TFQFN Exposed Pad
Supplier Device Package 32-QFN (5x5)
Ultra Librarian 3D Model Ultra Librarian AVA-0233LN+ CAD Model

Description

The AVA-0233LN+ is a GaAs pHEMT MMIC Distributed Amplifier that operates from 2 to 30 GHz. The amplifier provides solid performance of 16.3 dB gain, 2.4 dB noise figure, +13.6 dB P1dB, and +25.7 dBm OIP3 from a self-biased single +5V supply drawing only 65 mA. The control voltage bias input VC enables the gain to be varied by over 30 dB across the operating band. The AVA-0233LN+ MMIC amplifier is housed in an industry standard 5x5mm QFN-style package, with RF ports internally matched to 50Ω, facilitating easy integration into microwave system PC boards.
