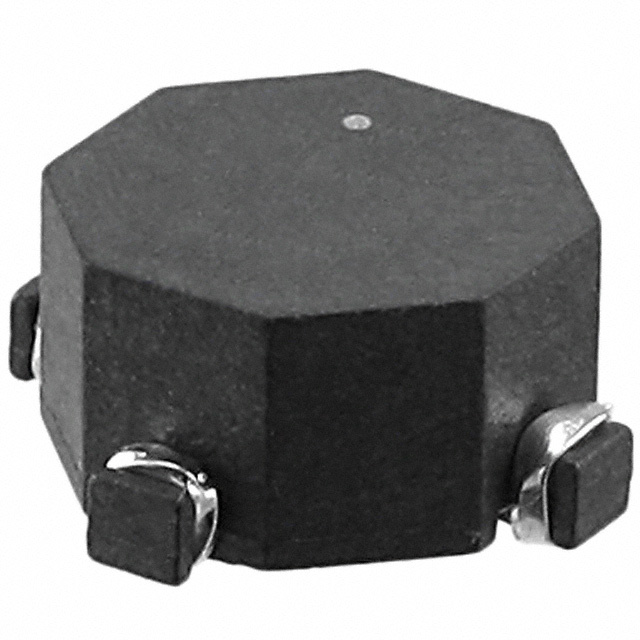

Same model may have multiple batches, images only for reference.
PA0367ANLT Pulse – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PA0367ANLT

Part No PA0367ANLT
Manufacturer Pulse
Catalog Switching Converter, SMPS Transformers
Description Flyback Converters For For DC/DC Converters SMPS Transformer 500Vrms Isolation Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Pulse Electronics
Packaging Reel - TR
Type For DC/DC Converters
Applications Flyback Converters
Intended Chipset LT3420
Chipset Manufacturer Linear Technology
Voltage - Isolation 500Vrms
Temperature Range - Operating -40°C ~ 130°C
Mounting Type Surface Mount
Size / Dimension 0.360" L x 0.360" W (9.14mm x 9.14mm)
Height - Seated (Max) 0.215" (5.45mm)
Footprint 0.460" L x 0.460" W (11.68mm x 11.68mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1481729-PA0367ANLT
Ultra Librarian 3D Model Ultra Librarian PA0367ANLT CAD Model
