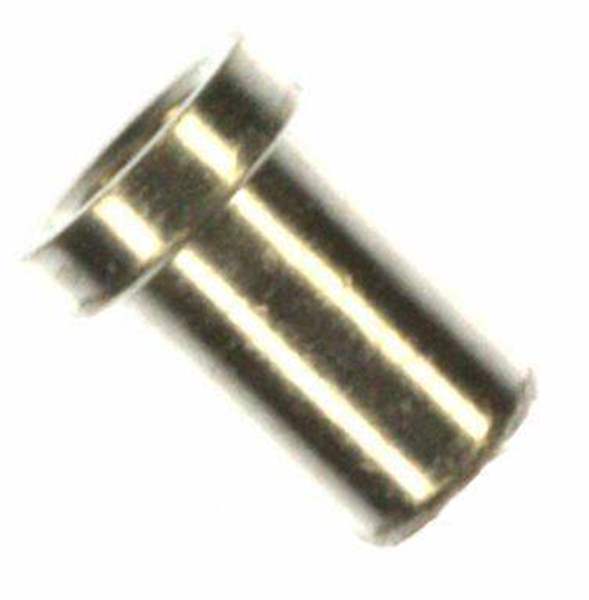

4015-0-67-80-30-27-10-0 Mill-Max Manufacturing Corp.
Same model may have multiple batches, images only for reference.

4015-0-67-80-30-27-10-0

Part No 4015-0-67-80-30-27-10-0
Manufacturer Mill-Max Manufacturing Corp.
Catalog Terminals
Description CONN PIN RCPT .015-.025 SOLDER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Mill-Max Manufacturing Corp.
Category Connectors, Interconnects Terminals PC Pin Receptacles, Socket Connectors
Product Status Active
Termination Solder
Length - Overall 0.100" (2.54mm)
Accepts Pin Diameter 0.015" ~ 0.025" (0.38mm ~ 0.64mm)
Pin Hole Diameter 0.043" (1.09mm)
Mounting Hole Diameter 0.057" (1.45mm)
Flange Diameter 0.068" (1.73mm)
Socket Depth 0.100" (2.54mm)
Win Source Part Number WS1208331-4015-0-67-80-30-27-10-0
Ultra Librarian 3D Model Ultra Librarian 4015-0-67-80-30-27-10-0 CAD Model

Description

• These through-hole (tubular) receptacles are designed for hand, wave or reflow* soldering. The ORGANIC FIBRE PLUG® barrier prevents solder paste or flux from contaminating the spring contact.
• After soldering, the OFP® barrier is pushed out of the receptacle when the device is plugged in.
• All parts are available as discrete receptacles or supplied on carrier tape per EIA-481 to feed industry standard pick and place machines.
