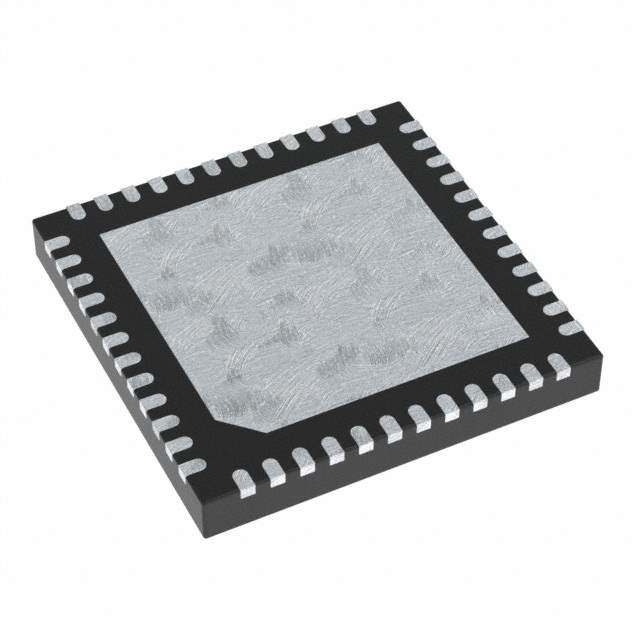

The PD69104B1FILQ is a Power over Ethernet (PoE) controller IC from Microsemi Corporation. It is designed to manage and deliver power to devices via Ethernet cables, adhering to IEEE 802.3af/at/bt standards. This allows for the powering of devices such as IP cameras, VoIP phones, and wireless access points without the need for separate power supplies, streamlining installation and reducing costs.

Applications:

• IP Cameras
• VoIP Phones
• Wireless Access Points
• Network Routers and Switches
• Industrial Automation Equipment

Features:

• IEEE 802.3af/at/bt compliant
• Four independent PoE ports
• Automatic detection and classification of powered devices (PD)
• Programmable power allocation
• Overload and short-circuit protection on each port
• LED indicators for port status and diagnostics
• Advanced power management features

Benefits:

• Simplified Installation: Eliminates the need for separate power cables and outlets, reducing installation time and costs.
• Cost Savings: Reduces the overall cost of network infrastructure by eliminating the need for dedicated power supplies.
• Increased Flexibility: Allows for easy deployment and relocation of devices without requiring electrical infrastructure modifications.
• Improved Reliability: Centralized power management ensures stable and reliable power delivery to connected devices.
• Enhanced Safety: Built-in protection features prevent damage to both the power source and connected devices.

The PD69104B1FILQ is a highly integrated solution for Power over Ethernet applications, simplifying the design and implementation of PoE-enabled devices. The automatic PD detection and classification feature ensures compatibility with a wide range of PoE devices. Microsemi Corporation is a reputable manufacturer of PoE solutions, known for their reliability and performance. The programmable power allocation feature allows for optimizing power delivery based on the needs of the connected devices. The overload and short-circuit protection on each port enhances the safety and reliability of the PoE system. The comprehensive LED indicators provide valuable diagnostic information, simplifying troubleshooting and maintenance. Its advanced power management capabilities contribute to overall system efficiency and reduce energy consumption.
