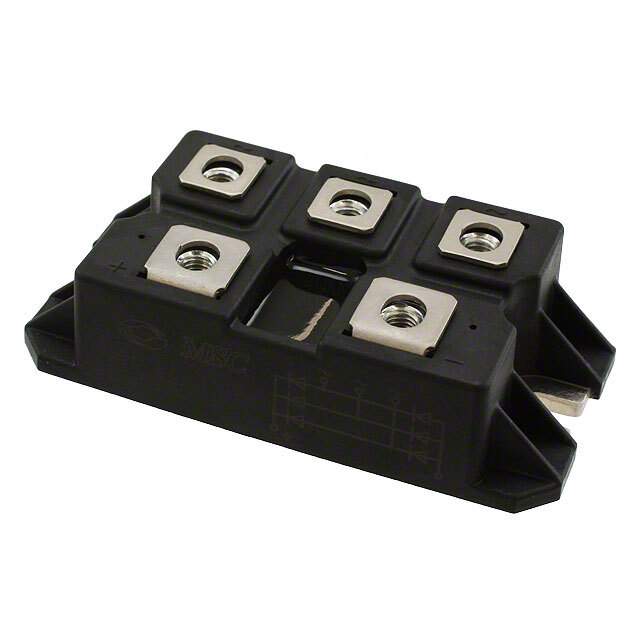

MSDM75-16 Real Image
Same model may have multiple batches, images only for reference.

MSDM75-16

Part No MSDM75-16
Manufacturer Microsemi Corporation
Catalog Bridge Rectifiers
Description MOD BRIDGE 3PH 1600V 75A M2-1 / Rectifier Bridge Diode Single 1.6KV 75A 5-Pin Case M2-1
Datasheet
MSDM75-16 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Part Status Obsolete(EOL)
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1600V
Current - Average Rectified (Io) 75A
Voltage - Forward (Vf) (Maximum) @ If 1.6V @ 150A
Current - Reverse Leakage @ Vr 500μA @ 1600V
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting Chassis Mount
Package Module
Manufacturer Package M2-1
Win Source Part Number 789507-MSDM75-16
Popularity Medium
Supply and Demand Status Limited
Family Name MSDM75-16
Introduction Date October 19, 2011
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MSDM75-16 CAD Model

Description

The MSDM75-16 is a three-phase diode module from Microsemi Corporation that offers reliable performance in a chassis mount package.

  • Average Rectified Current: 75A
  • Reverse Leakage Current: 500μA @ 1600V
  • Peak Reverse Voltage: 1600V
  • Forward Voltage: 1.6V @ 150A
  • Operating Temperature: -40°C to 150°C
