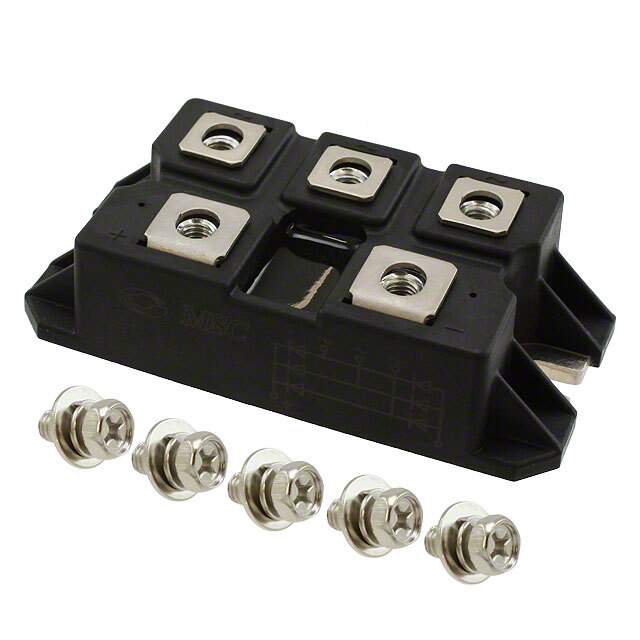

MSDM100-16 Real Image
Same model may have multiple batches, images only for reference.

MSDM100-16

Part No MSDM100-16
Manufacturer Microsemi Corporation
Catalog Bridge Rectifiers
Description BRIDGE RECT 3P 1.6KV 100A M2-1 / Glass Passivated Three Phase Rectifier Bridge
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Microsemi Corporation
Packaging Bulk
Part Status Obsolete (End Of Life)
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1.6kV
Current - Average Rectified (Io) 100A
Voltage - Forward (Vf) (Maximum) at If 1.9V at 300A
Current - Reverse Leakage at Vr 500μA at 1600V
Temperature Range - Operating -40°C ~ 150°C
Mounting Style Chassis Mount
Manufacturer Package Module
Supplier Device Package M2-1
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 811292-MSDM100-16
Ultra Librarian 3D Model Ultra Librarian MSDM100-16 CAD Model

Description

The MSDM100-16 is a three-phase standard technology diode from Microsemi Corporation.

  • Win Source Part Number: 811292-MSDM100-16
  • Status: Obsolete (end of life)
  • Mounting: Chassis Mount
  • Maximum Peak Reverse Voltage: 1.6kV
  • Average Rectified Current: 100A
  • Voltage Forward (Vf): 1.9V @ 300A
  • Current Reverse Leakage (Vr): 500μA @ 1600V
  • Supplier Device Package: M2-1
  • Manufacturer Package: Module
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
