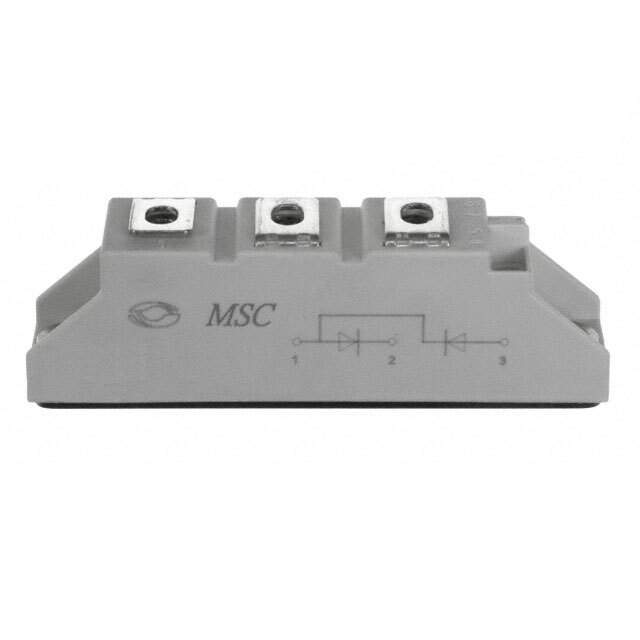

MSAD100-16 Real Image
Same model may have multiple batches, images only for reference.

MSAD100-16

Part No MSAD100-16
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Arrays
Description DIODE MODULE 1.6KV 100A D1 / Rectifier Diode 1.6KV 100A 3-Pin Case D1
Datasheet
MSAD100-16 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Packaging Bulk
Part Status Obsolete(EOL)
Diode Configuration 1 Pair Common Anode
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 1600V
Current - Average Rectified (Io) (per Diode) 100A
Voltage - Forward (Vf) (Maximum) @ If 1.35V @ 300A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5mA @ 1600V
Mounting Chassis Mount
Package D1
Manufacturer Package D1
Win Source Part Number 789492-MSAD100-16
Popularity Medium
Supply and Demand Status Limited
Family Name MSAD100-16
Introduction Date December 03, 2009
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MSAD100-16 CAD Model

Description

The MSAD100-16 is a standard diode manufactured by Microsemi Corporation.

  • Current Rating: 100A
  • Voltage Rating: 1600V
  • Package Type: D1
  • Mounting Type: Chassis
  • Forward Voltage: 1.35V @ 300A
  • Reverse Leakage Current: 5mA @ 1600V
  • Alternative Part: CN411699C, CN411699, F18107CAD1600, IRKJ91/14A
  • Discrete Semiconductor Products: Yes
