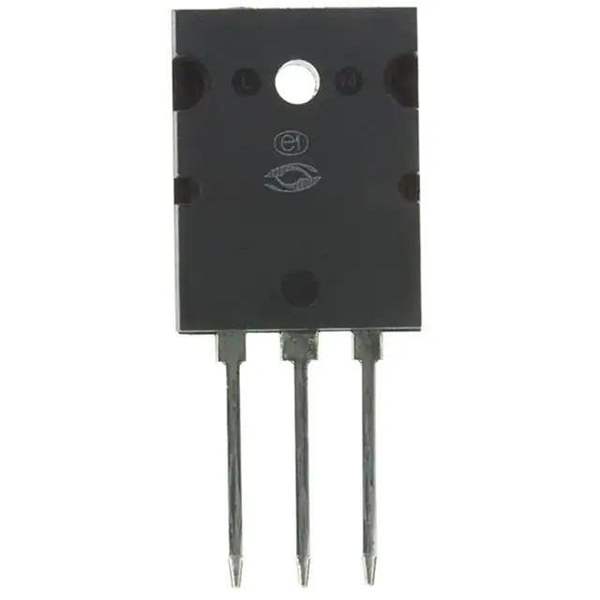

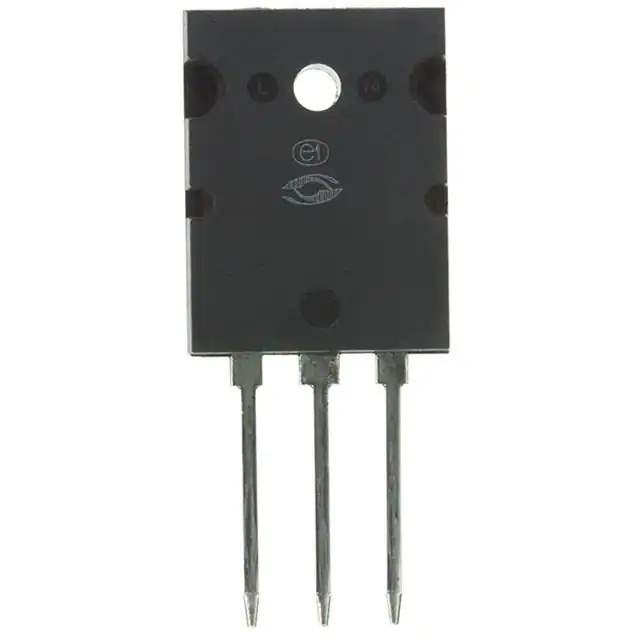

APT60DQ120LCTG Real Image
Same model may have multiple batches, images only for reference.

APT60DQ120LCTG

Part No APT60DQ120LCTG
Manufacturer Microsemi Corporation
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 1200V 60A TO264
Datasheet
APT60DQ120LCTG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Microsemi Corporation
Package Tube
Product Status Obsolete
Diode Configuration 1 Pair Common Cathode
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) (per Diode) 60A
Voltage - Forward (Vf) (Max) @ If 3.3 V @ 60 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 320 ns
Current - Reverse Leakage @ Vr 100 µA @ 1200 V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Type Through Hole
Package / Case TO-264-3, TO-264AA
Supplier Device Package TO-264 [L]
Base Product Number APT60
Standard Package 30 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 564183-APT60DQ120LCTG
Ultra Librarian 3D Model Ultra Librarian APT60DQ120LCTG CAD Model

Description

The APT60DQ120LCTG is a fast recovery diode array designed for rectifier applications.

  • Maximum DC Reverse Voltage: 1200 V
  • Maximum Forward Voltage: 3.3 V @ 60 A
  • Reverse Recovery Time: 320 ns
  • Configuration: 1 pair common cathode
  • Average Rectified Current: 60 A per diode
  • Mounting: Through-hole mounting
  • Package: TO-264-3
  • Manufacturer: Microsemi Corporation
  • Product Status: Obsolete
  • Moisture Sensitivity Level: 1 (unlimited floor life)
  • REACH: Unaffected
  • ECCN: EAR99
