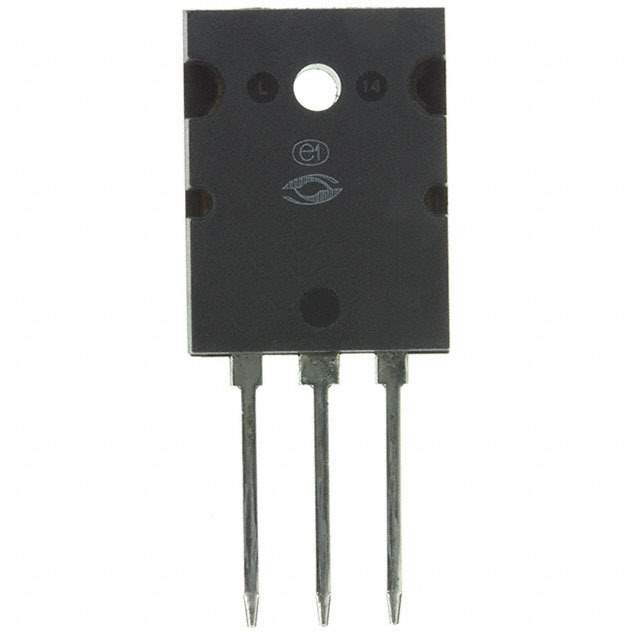

APT56F50L Real Image
Same model may have multiple batches, images only for reference.

APT56F50L

Part No APT56F50L
Manufacturer Microsemi Corporation
Catalog Transistors - FETs, MOSFETs - RF
Description N-Channel FREDFET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Microsemi Corporation
Series POWER MOS 8
Packaging Tube
Channel Type Type N
Technology MOSFET
Drain Source Voltage 500V
Current - Continuous Drain (Id) @ 25°C 56A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Vgs(th) (Maximum) @ Id 5V @ 2.5mA
Gate Charge (Qg) (Maximum) @ Vgs 220nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 8800pF @ 25V
Vgs (Maximum) ±30V
Power Dissipation (Maximum) 780W (Tc)
Rds On (Maximum) @ Id, Vgs 100 mOhm @ 28A, 10V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Manufacturer Package TO-264 [L]
Package TO-264-3, TO-264AA
Win Source Part Number 1146843-APT56F50L
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Family Name APT56F50L
Introduction Date January 09, 2006
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian APT56F50L CAD Model

Description

The Microsemi Corporation APT56F50L is a MOSFET transistor that is part of the POWER MOS 8 series manufactured by Microsemi Corporation.

  • Mounting Type: Through Hole
  • Current: 56A @ 25°C
  • Voltage Breakdown: 500V
  • Maximum Power Dissipation: 780W @ Tc
  • Package: TO-264-3, TO-264AA
  • Alternative Parts: IXTB62N50L, IXFK48N50Q, and IXFK55N50
  • Suitable for: Applications that require a MOSFET transistor with a high current and voltage breakdown
