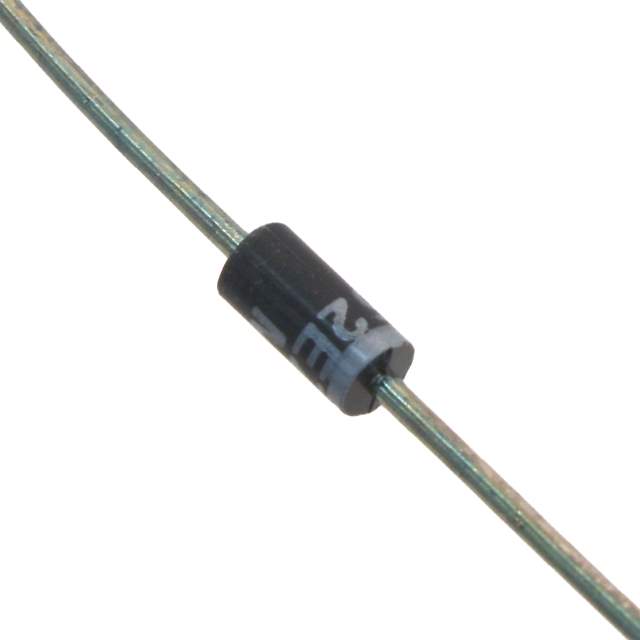

The 2EZ9.1D5E3/TR12 is a 5W Zener diode manufactured by Microsemi Corporation, designed for voltage regulation and transient voltage suppression. This diode is commonly used to provide a stable reference voltage or to protect sensitive electronic components from voltage spikes.

Applications

• Voltage regulation in power supplies
• Transient voltage suppression (TVS)
• Overvoltage protection in electronic circuits
• Clipping circuits
• Reference voltage generation

Features

• Zener diode
• 5W power dissipation
• Precise Zener voltage of 9.1V
• DO-41 package
• High surge current capability

Benefits

• Stable voltage regulation
• Effective protection against voltage transients
• Reliable performance under surge conditions
• Easy integration into existing circuits due to the standard DO-41 package
• Precise voltage clamping at the specified Zener voltage

Additional Details

The 2EZ9.1D5E3/TR12 Zener diode operates by maintaining a nearly constant voltage across its terminals when reverse-biased and operating in the breakdown region. The specified Zener voltage of 9.1V is the nominal voltage at which the diode will regulate. The datasheet provides information on the Zener impedance, which affects the voltage regulation performance under varying current conditions. The maximum surge current rating is an important parameter for determining the diode's ability to withstand transient voltage events. Proper heatsinking may be required for high-power applications to maintain the diode's junction temperature within its specified limits. The DO-41 package is a standard through-hole package that is easy to mount on printed circuit boards. Detailed electrical characteristics, such as the reverse leakage current and forward voltage, can be found in the Microsemi datasheet. Adherence to maximum ratings for power dissipation and surge current is essential for reliable operation and to prevent diode failure.
