HAL1503SU-A Micronas GmbH
Same model may have multiple batches, images only for reference.

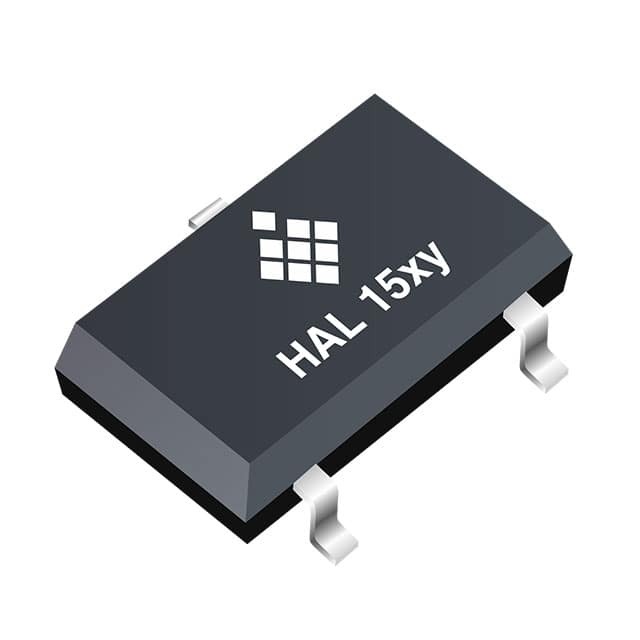

HAL1503SU-A

Part No HAL1503SU-A
Manufacturer Micronas GmbH
Catalog Magnetic Sensors - Switches (Solid State)
Description MAGNETIC SWITCH UNIPOLAR SOT23-3 / Digital Switch Unipolar Switch Open Drain Hall Effect SOT-23-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Switches (Solid State)
Mfr TDK-Micronas GmbH
Package Tape & Reel
Function Unipolar Switch
Technology Hall Effect
Polarization South Pole
Sensing Range 5.5mT Trip, 3.7mT Release
Voltage - Supply 2.7V ~ 24V
Output Type Open Drain
Temperature Range - Operating -40°C ~ 70°C (TJ)
Mounting SMD (SMT)
Supplier Device Package SOT-23-3
Package / Case TO-236-3, SC-59, SOT-23-3
Base Product Number HAL1503
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names HAL1503SU-A-4-R-6-00-HASX-020R,HAL1503SU-ATR,79801520,HAL1503SU-A-4-R-6-39-HASX-030D,HAL1503SU-ADKR,HAL1503SU-ACT
Standard Package 10,000
Win Source Part Number 1120680-HAL1503SU-A
Ultra Librarian 3D Model Ultra Librarian HAL1503SU-A CAD Model

Description

The HAL1503SU-A is a hall effect magnetic sensor switch from TDK-Micronas GmbH designed for use in applications where a unipolar switch function is required.

  • Switch Function: Unipolar
  • Output Type: Open Drain
  • Polarization: South Pole
  • Sensing Range (Trip): 5.5mT
  • Sensing Range (Release): 3.7mT
  • Voltage Supply: 2.7V to 24V
  • Package: TO-236-3, SC-59, SOT-23-3
  • Mounting Technology: SMD (SMT)
