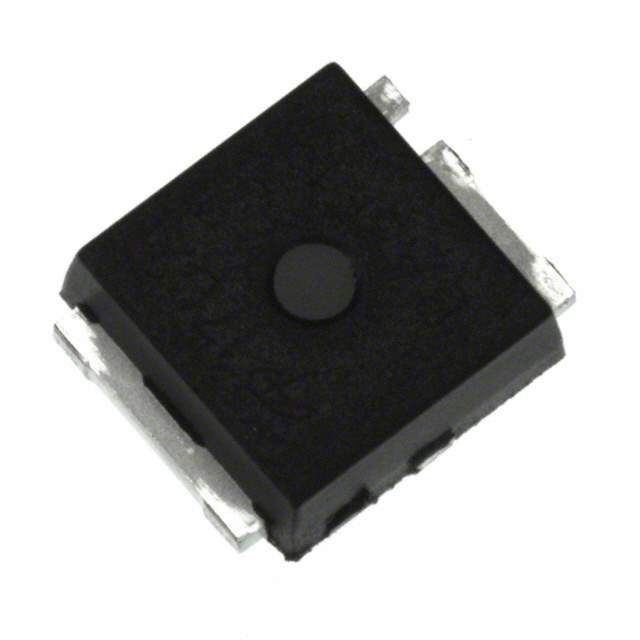

AOL1404 Real Image
Same model may have multiple batches, images only for reference.

AOL1404

Part No AOL1404
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description 20V N-Channel MOSFET
Datasheet
AOL1404 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Channel Type Type N
Technology MOSFET
Drain Source Voltage 20V
Current - Continuous Drain (Id) @ 25°C 18A (Ta), 45A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 4.5V
Vgs(th) (Maximum) @ Id 1.6V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 43nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 4630pF @ 10V
Vgs (Maximum) ±12V
Power Dissipation (Maximum) 2.1W (Ta), 60W (Tc)
Rds On (Maximum) @ Id, Vgs 4 mOhm @ 20A, 4.5V
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting SMD
Manufacturer Package UltraSO-8
Package 3-PowerSMD, Flat Leads
Win Source Part Number 1144961-AOL1404
Manufacturer Homepage www.aosmd.com
Family Name AOL1404
Introduction Date February 02, 2010
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date Obsolete
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AOL1404 CAD Model

Description

The AOL1404 MOSFET from Alpha & Omega Semiconductor Inc. is a high-performance device designed for use in a range of electronic applications.

  • Channel Type: N-channel
  • Drain Source Voltage: 20V
  • Continuous Drain Current: 18A (Ta), 45A (Tc)
  • Gate Charge: 43nC
  • Input Capacitance: 4630pF
  • Maximum Power Dissipation: 2.1W (Ta), 60W (Tc)
  • Rds On: 4 mOhm @ 20A, 4.5V
  • Package: UltraSO-8
  • Packaging: Reel
