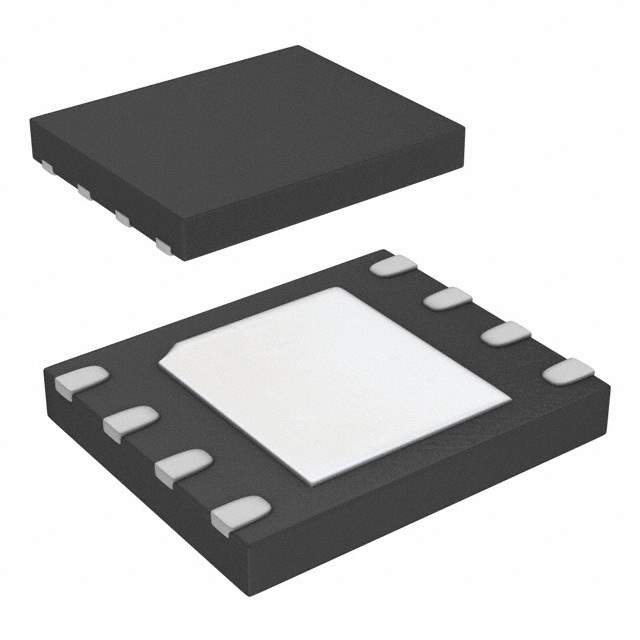

The MT25QU128ABA1EW9-0SIT TR is a 128Mb (16MB) serial NOR flash memory device manufactured by Micron Technology. It's part of their MT25Q family, designed for high-performance, low-power applications requiring reliable storage of code and data. This memory device features a standard SPI interface, allowing easy integration with microcontrollers and other embedded systems. The 'TR' suffix typically indicates tape and reel packaging for automated assembly.

Applications

• Embedded systems: Storage of boot code, firmware, and data in embedded devices.
• Industrial control: Program storage and configuration data in industrial automation systems.
• Automotive electronics: Storing boot code and configuration data in automotive ECUs.
• IoT devices: Storing firmware and data in Internet of Things (IoT) devices.
• Consumer electronics: Storing firmware and user data in consumer devices.

Features

• 128Mb (16MB) capacity: Provides ample storage for code and data.
• SPI interface: Enables easy communication with microcontrollers and other systems.
• Quad SPI (QSPI): Supports high-speed data transfer rates.
• Low power consumption: Suitable for battery-powered applications.
• High endurance: Withstands a large number of program/erase cycles.
• Small package: Available in compact packages for space-constrained applications.

Benefits

• Reliable data storage: Ensures data integrity and prevents corruption.
• Fast access times: Enables quick boot-up and program execution.
• Low power consumption: Extends battery life in portable devices.
• Easy integration: Simplifies system design and reduces development time.
• Long-term availability: Ensures a stable supply of memory devices.

Additional Details

The MT25QU128ABA1EW9-0SIT TR utilizes a Serial Peripheral Interface (SPI) for communication with a host controller. In addition to standard SPI, it supports Quad SPI (QSPI), which allows for faster data transfer rates by using four data lines instead of one. The device operates from a single power supply, typically 1.8V or 3.3V. The low power consumption is crucial for battery-powered applications, where long battery life is essential. The high endurance of the flash memory ensures that it can withstand a large number of program/erase cycles, making it suitable for applications where data is frequently updated. The memory is organized into sectors, which can be individually erased and programmed. The device typically comes in a small-outline integrated circuit (SOIC) or quad flat pack no-leads (QFN) package. The specific operating temperature range, access times, and endurance ratings can be found in the manufacturer's datasheet. The MT25Q family offers various security features, such as password protection and unique serial numbers, to protect sensitive data.
