Microchip Technology USB3320C-EZK-TR USB 2.0 Transceiver

The USB3320C-EZK-TR is a high-performance, low-power USB 2.0 transceiver chip produced by Microchip Technology. This versatile component is designed to meet the needs of a variety of USB applications across a range of platforms. With its advanced features and compact size, the USB3320C-EZK-TR is ideal for developers looking to integrate USB connectivity into their designs with minimal complexity and maximum efficiency.

The USB3320C-EZK-TR offers a highly integrated solution by incorporating the key elements required for USB 2.0 applications. It includes a USB 2.0 transceiver, a serial interface engine, an on-chip clock recovery, and PHYBoost technology, which provides enhanced signal integrity over a variety of physical media. The device is capable of operating at high-speed (480 Mbps), full-speed (12 Mbps), and low-speed (1.5 Mbps) data rates, ensuring compatibility with different USB standards.

One of the standout features of this transceiver is its low power consumption, making it suitable for battery-powered and power-sensitive applications. Additionally, the USB3320C-EZK-TR supports the UTMI+ Level 3 interface for USB 2.0 high speed and full speed data transfers, while also being compliant with the USB-IF Battery Charging specification.

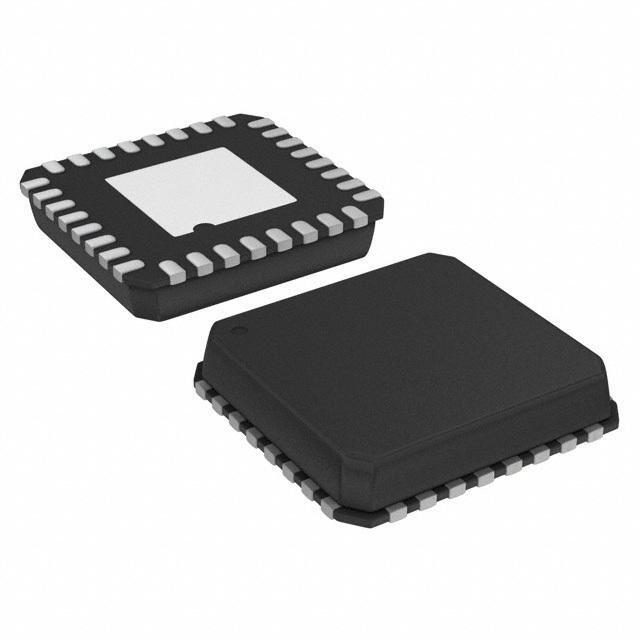

Designed for flexibility, the USB3320C-EZK-TR comes in a compact 32-QFN (5x5 mm) package, which allows for easy integration into space-constrained designs. It is also available in tape and reel packaging (denoted by the '-TR' suffix), facilitating its use in automated manufacturing processes. The device operates over the industrial temperature range of -40°C to +85°C, ensuring reliable performance in various environmental conditions.

Whether you're developing mobile phones, digital cameras, printers, or any other USB-enabled device, the USB3320C-EZK-TR from Microchip Technology provides a robust, cost-effective solution for implementing USB 2.0 connectivity. With its high level of integration and proven performance, this transceiver is an excellent choice for designers looking to enhance their products with reliable USB functionality.
