The USB3310C-CP-TR is a highly integrated USB 2.0 Hi-Speed transceiver from the renowned manufacturer, Microchip Technology. This device is specifically designed to cater to the needs of power-sensitive applications, offering an impressive feature set combined with superior performance.

Key Features

• USB-IF Compliance: The transceiver is compliant with the Universal Serial Bus Specification Rev. 2.0 and supports Hi-Speed, Full-Speed, and Low-Speed data rates.
• Low Power Consumption: With its low power consumption, the USB3310C-CP-TR is ideal for battery-powered devices and applications where power efficiency is critical.
• UTMI+ Interface: It features a UTMI+ Level 3 interface for USB 2.0 Hi-Speed (480 Mbps) applications, ensuring seamless integration with existing technologies.
• Automatic Detection: The device includes automatic detection and support for the Session End (SE0) condition.
• Integrated Resistors: On-chip 1.5 kΩ pull-up and 15 kΩ pull-down resistors eliminate the need for external components, simplifying the design and reducing the bill of materials.
• Flexible Clocking: It offers a variety of clocking options including a crystal oscillator, an external source, or a clock generator, providing design flexibility.

Applications

The USB3310C-CP-TR is versatile and can be used in a multitude of applications. It is particularly suited for:

• Mobile Phones
• PDAs and Personal Media Players
• Portable Devices
• GPS Systems
• Industrial Instruments

Package and Availability

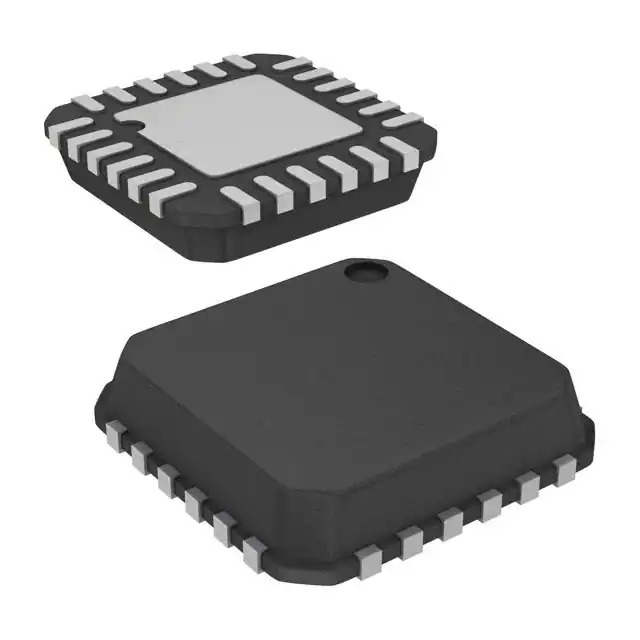

The device is offered in a compact QFN-24 package, which is ideal for space-constrained applications. It is available in tape and reel form, denoted by the 'TR' suffix, facilitating easy assembly during the manufacturing process. The USB3310C-CP-TR is part of Microchip Technology's commitment to providing high-quality, reliable USB interface solutions for a diverse range of electronic devices.
