Microchip Technology USB2412-DZK USB 2.0 Hub Controller

The USB2412-DZK from Microchip Technology is a versatile and high-performance USB 2.0 hub controller designed to enhance connectivity options for various USB devices. This compact and efficient solution is perfect for expanding USB capabilities in embedded systems, consumer electronics, and PC peripherals.

Key Features

• USB-IF Certification: The device is USB 2.0-compliant and has been certified by the USB Implementers Forum, ensuring interoperability with a wide range of USB devices.
• Port Expansion: It features two downstream ports for connecting additional USB devices, enabling users to extend their system’s USB capabilities.
• MultiTRAK™ Technology: The USB2412-DZK incorporates Microchip's proprietary MultiTRAK technology, which allows for simultaneous operation of multiple transaction translators. This results in efficient handling of bandwidth for mixed-speed USB traffic.
• Low Power Consumption: Designed with power efficiency in mind, the hub controller supports low-power states, making it suitable for battery-powered applications.
• Overcurrent Protection: Each downstream port has individual overcurrent protection to safeguard connected devices from power surges or excessive current draw.
• Customization: The hub controller can be customized with manufacturer-specific VID/PID and device configurations through an external EEPROM or via the SMBus.
• LED Indicators: Built-in LED indicators provide visual status for port power and overcurrent conditions, aiding in diagnostics and user feedback.

Applications

The USB2412-DZK is ideal for a variety of applications, including:

• Desktop and laptop computers
• Consumer electronics such as TVs, DVRs, and media players
• Portable docking stations and monitors
• Industrial control and automation systems

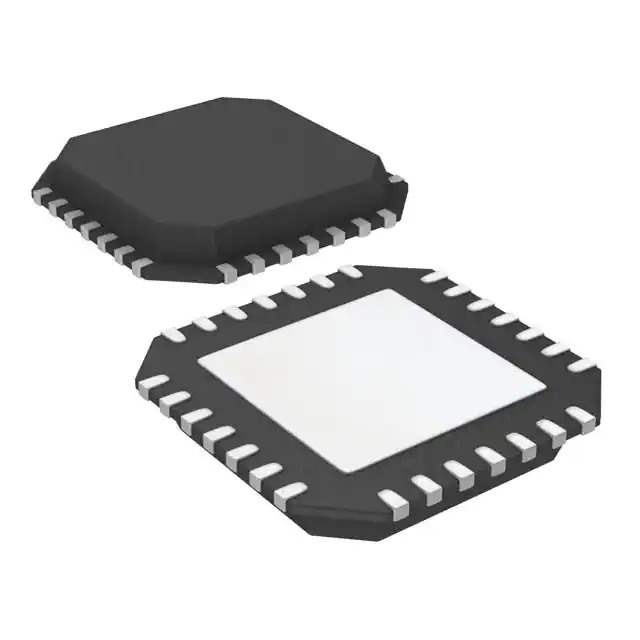

With its compact QFN package, the USB2412-DZK hub controller is an excellent choice for space-constrained applications while providing the reliability and performance expected from Microchip Technology. Its ability to manage multiple USB devices efficiently makes it a go-to solution for designers looking to enhance USB connectivity in their next project.
