The TC4467MJD from Microchip Technology is a high-performance, precision quad CMOS buffer/driver designed to handle the demanding requirements of a wide array of applications. This integrated circuit is part of the TC4467 family, known for its reliability and versatility in driving capacitive, resistive, and inductive loads.

Key Features

• Output Current: The device is capable of delivering peak output currents of up to 1.5A, making it suitable for high-power driving applications.
• Supply Voltage Range: It operates over a broad supply voltage range from 4.5V to 18V, providing flexibility in various power environments.
• Protection Mechanisms: Equipped with latch-up protection, the TC4467MJD ensures stable operation under adverse conditions. Additionally, it features built-in thermal shutdown and short-circuit protection to safeguard against potential damage.
• Input Compatibility: This device supports both TTL and CMOS input logic levels, allowing it to interface with a wide range of control circuits without the need for additional level shifting.
• Speed: With a propagation delay time of typically 55ns, the TC4467MJD is optimized for applications requiring high-speed operation.

Applications

The versatility of the TC4467MJD makes it an ideal choice for a variety of applications, including:

• Motor and solenoid driving
• Power MOSFET gate driving
• Line driving
• Power amplifier stages
• High-speed logic buffers

Package and Quality

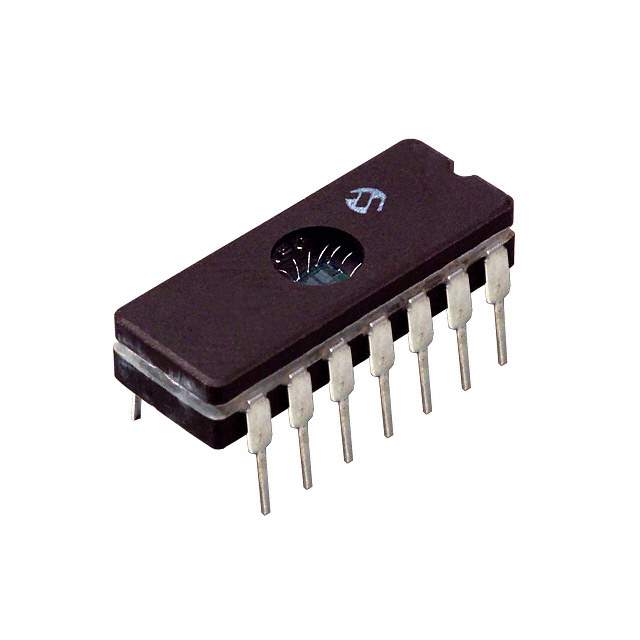

The device is available in a robust 14-pin Ceramic Dual In-line Package (CERDIP), providing excellent thermal and mechanical reliability. Microchip Technology's commitment to quality ensures that the TC4467MJD meets stringent industry standards for performance and durability, making it a trustworthy choice for both commercial and industrial applications.

Conclusion

In summary, the TC4467MJD from Microchip Technology stands out as a powerful and reliable solution for driving a wide range of loads. Its high output current capability, extensive protection features, and compatibility with various logic levels make it a versatile component suited for high-performance applications.
