Microchip Technology's SST39SF020A-55-4C-WHE-T Flash Memory

The SST39SF020A-55-4C-WHE-T is a high-performance CMOS Multi-Purpose Flash (MPF) manufactured by Microchip Technology. This device offers a storage capacity of 2 Mbit (256K x 8) and utilizes a 4.5V to 5.5V power supply, making it suitable for a wide range of applications that require reliable and durable non-volatile memory storage.

Designed with versatility in mind, the SST39SF020A-55-4C-WHE-T operates with a sector-erase and block-erase architecture, which allows for flexible memory management. Each chip contains 128 sectors, each with 128 bytes, and a total of four blocks, providing users with the ability to erase and reprogram specific areas without affecting the entire memory content. This feature is particularly beneficial for applications where data needs to be updated frequently, such as in firmware storage or parameter settings.

This flash memory device boasts a fast access time of 55 ns, enabling quick read operations, which is essential for time-sensitive tasks and high-performance systems. Additionally, the SST39SF020A-55-4C-WHE-T supports both parallel programming and byte-programming modes, offering flexibility for different programming requirements and simplifying the integration process into various system designs.

The SST39SF020A-55-4C-WHE-T is also known for its endurance, with a minimum of 100,000 erase and program cycles per sector, ensuring long-term reliability for products that need to withstand extensive usage over time. Furthermore, data retention is guaranteed for a minimum of 100 years, providing peace of mind for applications where data integrity over extended periods is critical.

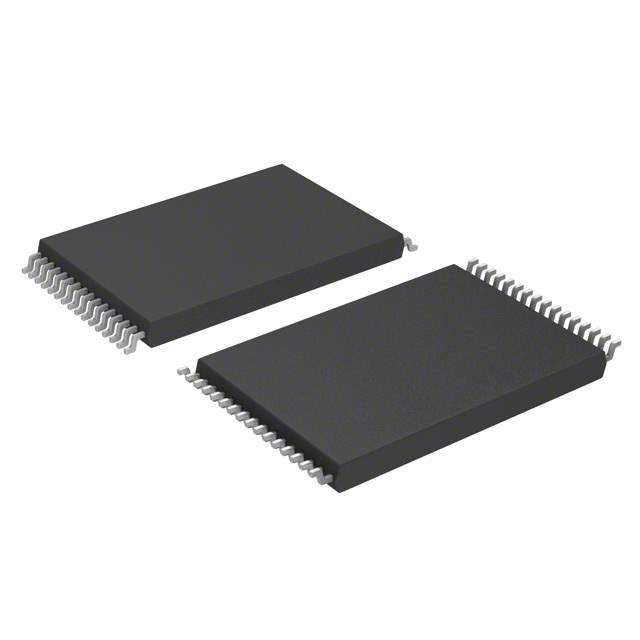

Encased in a 32-pin TSOP (Thin Small Outline Package), the SST39SF020A-55-4C-WHE-T is designed for space-efficient PCB layouts, making it a suitable choice for compact electronic devices. Its temperature range of 0°C to +70°C allows it to operate effectively in most standard environments.

In summary, the SST39SF020A-55-4C-WHE-T from Microchip Technology is a robust and reliable flash memory solution that offers fast access times, flexible memory management, and long-term durability for a wide array of electronic applications.
