Products specifications

Category RF and Wireless - RF Antennas
Mfr Microchip Technology
Series -
Package Bag
Product Status Active
RF Family/Standard -
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range -
Antenna Type Whip, Straight
Number of Bands 1
VSWR -
Return Loss -
Gain 0.56dB
Features -
Termination SMA Male
Ingress Protection -
Mounting Type Connector Mount
Height (Max) 1.118" (28.40mm)
Applications -
Base Product Number RN-SMA-S
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Win Source Part Number 1373192-RN-SMA-S
Ultra Librarian 3D Model Ultra Librarian RN-SMA-S CAD Model

Description

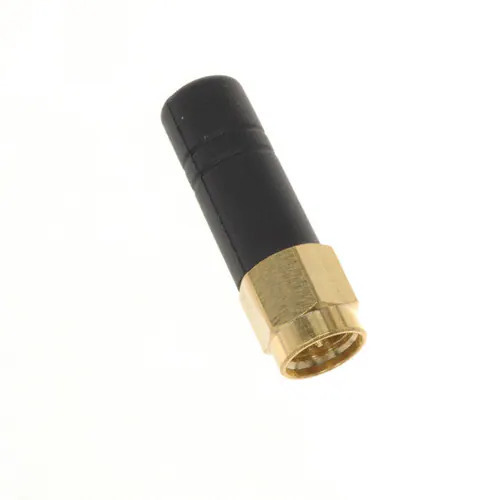

Microchip Technology's RN-SMA-S Antenna

The RN-SMA-S from Microchip Technology is a high-quality antenna designed to enhance the performance of wireless communication systems. This compact and durable antenna is specifically engineered to operate in conjunction with Microchip's diverse range of RF products, providing reliable and efficient wireless connectivity for a variety of applications.

The RN-SMA-S antenna features an SMA connector, which allows for easy and secure attachment to RF modules and devices equipped with an SMA female connector. This type of connection ensures a stable and robust link between the antenna and the device, minimizing signal loss and maximizing the performance of the wireless system.

With its wide operating frequency range, the RN-SMA-S is versatile and can be used in multiple RF applications. It is well-suited for use in the Industrial, Scientific, and Medical (ISM) radio bands, which includes popular frequencies such as 2.4GHz and 5GHz, among others. This makes the antenna a perfect choice for Wi-Fi, Bluetooth, Zigbee, and other wireless protocols that operate within these frequency ranges.

The antenna's design is optimized for omnidirectional radiation patterns, providing uniform coverage in all directions. This characteristic ensures that the antenna can maintain a consistent connection with the network, regardless of the orientation of the device it is connected to. Whether used in static applications or dynamic environments where the device's position may change, the RN-SMA-S maintains excellent performance.

Durability is also a key feature of the RN-SMA-S antenna. Built to withstand various environmental conditions, it is suitable for both indoor and outdoor applications. The robust construction ensures that the antenna can operate effectively even in challenging conditions, making it a reliable component for critical communication systems.

Overall, the RN-SMA-S from Microchip Technology is an exceptional choice for developers and engineers looking to enhance their wireless systems. Its compatibility with a wide range of devices, ease of installation, and high-performance characteristics make it an invaluable component for achieving efficient and reliable wireless communication.
