Microchip Technology PIC24FJ128GA702-E/SS Microcontroller

The PIC24FJ128GA702-E/SS is a high-performance microcontroller unit (MCU) from Microchip Technology, renowned for its reliability and versatility in a wide range of embedded applications. This 16-bit microcontroller is part of the PIC24F family, which is well-suited for low-power and cost-sensitive designs.

The PIC24FJ128GA702-E/SS features 128KB of Flash memory, which provides ample space for complex application code and data storage. With 8KB of RAM, this MCU can handle multitasking and buffering with ease, ensuring smooth operation even in demanding scenarios. The device operates at a maximum frequency of 32 MHz, delivering a balanced combination of processing power and energy efficiency.

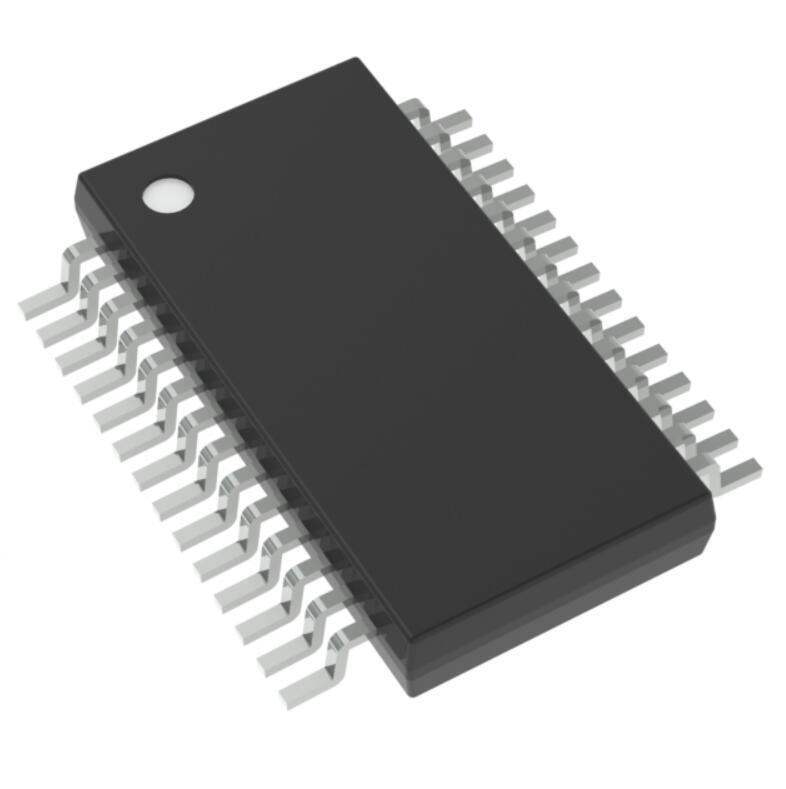

This microcontroller comes in a compact 28-SSOP (Shrink Small Outline Package) form factor, making it an ideal choice for space-constrained applications. It supports a wide operating voltage range from 2.0V to 3.6V, which allows for flexibility in power supply design and compatibility with various peripherals.

The PIC24FJ128GA702-E/SS is equipped with an array of integrated peripherals, including:

• Multiple communication interfaces such as I²C, SPI, and UART for seamless data exchange with other devices.
• Up to 21 general-purpose I/O pins for interfacing with sensors, actuators, and other electronic components.
• A 10-bit, 13-channel Analog-to-Digital Converter (ADC) for precise analog signal measurement.
• Two analog comparators for real-time signal comparison and decision-making.
• Charge Time Measurement Unit (CTMU) for touch sensing and precise time measurement.

Additionally, the MCU features advanced control peripherals like PWM outputs and timer/counters, which are essential for motor control, lighting control, and other real-time applications. The device also supports mTouch™ capacitive touch sensing for user interface applications.

The PIC24FJ128GA702-E/SS is designed with power management in mind, offering several modes of power-saving including Idle and Sleep modes. This capability, combined with its brown-out reset and watchdog timer, ensures reliable operation under varying power conditions.

For developers, Microchip provides comprehensive software and hardware support, including the MPLAB® X Integrated Development Environment (IDE) and MPLAB Code Configurator for simplified programming and configuration. This MCU is an excellent choice for designers looking for a robust, feature-rich microcontroller for their next project.
