Microchip Technology PIC17C756A-16I/L Microcontroller

The PIC17C756A-16I/L is a high-performance 8-bit CMOS microcontroller with integrated analog features, designed by Microchip Technology. This powerful MCU is ideal for applications requiring a combination of computational power and precise analog signal management, such as in industrial control systems, automotive electronics, and advanced consumer products.

Key Features

• CPU: The PIC17C756A-16I/L features a high-speed RISC processor architecture that allows for efficient instruction execution, with most instructions requiring just one machine cycle. This results in exceptional processing power, capable of reaching speeds up to 16 MHz.
• Memory: Equipped with 16KB of on-chip EPROM, this microcontroller provides ample space for complex programs. Additionally, it has 902 bytes of RAM for variable storage and 303 bytes of data EEPROM for non-volatile storage needs.
• I/O and Peripherals: It includes 33 I/O pins and a range of integrated peripherals, such as two 8-bit and two 16-bit timers, a synchronous serial port for SPI and I²C communication, and two capture/compare/PWM modules that enhance its versatility in control applications.
• Analog Features: The PIC17C756A-16I/L stands out with its 10-bit, 8-channel Analog-to-Digital Converter (ADC), which allows for precise digital interpretation of analog signals.
• Power Management: With power-saving features such as selectable oscillator options, a power-on reset, and a watchdog timer, the MCU ensures reliable operation while optimizing power consumption.
• Temperature Range: The device operates within an industrial temperature range of -40°C to +85°C, making it suitable for harsh environments.

Package and Temperature Range

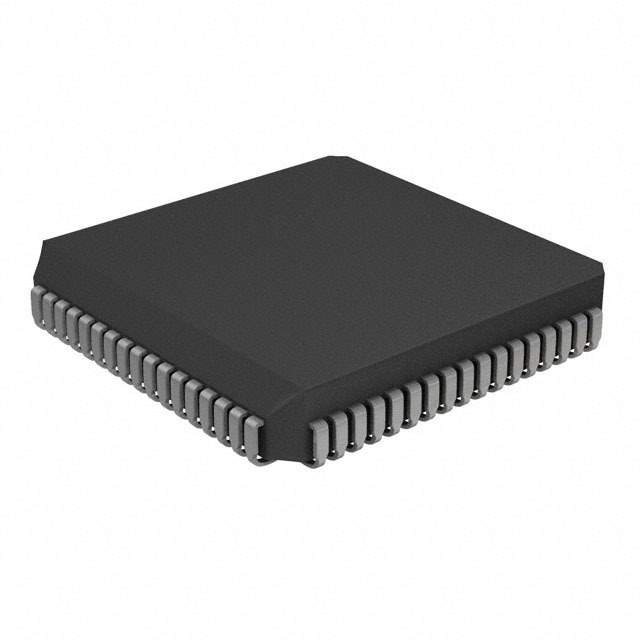

The PIC17C756A-16I/L comes in a 68-pin PLCC (Plastic Leaded Chip Carrier) package, which provides a compact footprint while allowing for easy integration into a wide range of applications. Its robust design ensures reliable performance even under challenging conditions.

Applications

Thanks to its advanced features and high integration level, the PIC17C756A-16I/L is an excellent choice for complex and demanding applications. These include but are not limited to:

• Automotive control systems
• Industrial automation
• Robotics
• Motor control
• Smart sensors
• Home appliances

With its combination of processing power, analog functionality, and robust design, the PIC17C756A-16I/L from Microchip Technology is a versatile and reliable microcontroller that can enhance the performance and capabilities of a wide array of electronic products.
