The PIC16F677-I/P is a high-performance microcontroller unit (MCU) from Microchip Technology, renowned for its efficient design and versatile features. This 8-bit MCU is part of Microchip's extensive PIC16F family, known for their ease of use and reliability in various applications.

Key Features

• CPU: The PIC16F677-I/P boasts a precision-engineered RISC architecture with only 35 single-word instructions to learn. This simplifies development and speeds up product time-to-market.
• Memory: It includes 2048 bytes of Flash program memory, 128 bytes of EEPROM data memory, and 128 bytes of RAM, providing ample space for complex applications and data storage.
• I/O Ports: The device offers 16 versatile I/O pins, allowing for flexible interfacing with peripheral devices.
• Analog-to-Digital Converter (ADC): An integrated 10-bit ADC with up to 12 channels enables the MCU to process analog signals, making it ideal for sensor-based applications.
• Communication Peripherals: The MCU includes a variety of communication options such as SPI, I2C, and USART for easy data transfer and connectivity with other devices.
• Timers: It features three flexible timers, including an 8-bit timer and two 16-bit timers, which can be used for timing and counting applications.
• PWM Modules: Two Capture/Compare/PWM (CCP) modules allow for advanced control in power and motor control applications.
• Operating Voltage: The PIC16F677-I/P operates within a range of 2.0V to 5.5V, accommodating various power supply conditions.
• Temperature Range: This MCU is operational across the industrial temperature range of -40°C to +85°C, ensuring reliability in harsh environments.

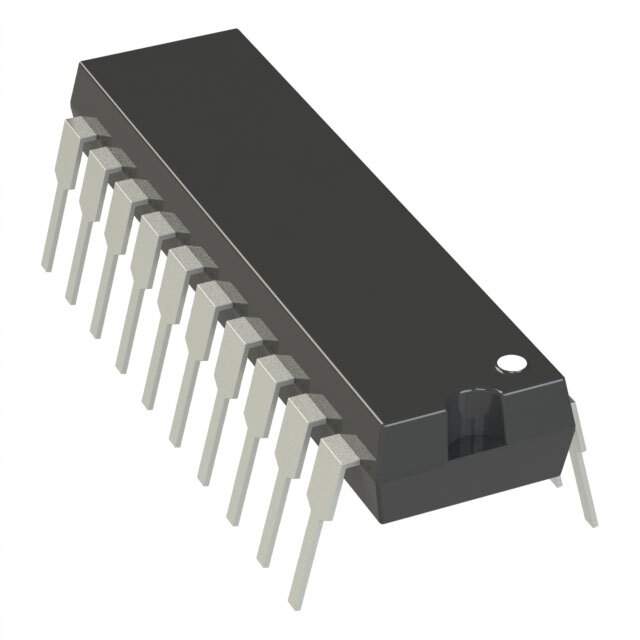

• Package: The device comes in a 18-pin PDIP (Plastic Dual In-line Package), which is suitable for breadboards and sockets, facilitating prototyping and testing.

Applications

The PIC16F677-I/P is a versatile MCU that can be employed in a wide array of applications. It is particularly well-suited for automation systems, consumer electronics, automotive applications, and industrial control systems. Its robust feature set also makes it an excellent choice for smart sensors, lighting control, and battery management systems.

Design Support

Microchip Technology provides extensive support for the PIC16F677-I/P with development tools, software libraries, and documentation to assist designers in creating innovative and efficient systems. The MCU is supported by Microchip's MPLAB® Integrated Development Environment (IDE) and a range of in-circuit debuggers and programmers, simplifying the development process from conception to production.
