The PIC16F1503-E/MG is a versatile and powerful microcontroller designed by Microchip Technology, tailored for embedded applications requiring a rich feature set and high levels of performance. This 8-bit microcontroller integrates Microchip’s advanced RISC architecture, offering an excellent speed-to-power ratio, making it ideal for a wide range of applications, from industrial controls to consumer electronics.

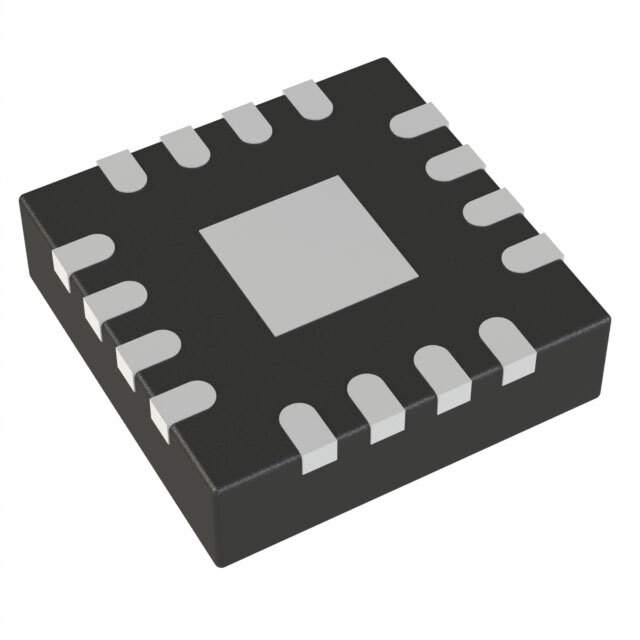

The PIC16F1503-E/MG comes in a 16-pin QFN package, which is suitable for space-constrained applications. Its operating temperature range (-40°C to +125°C) ensures reliability and functionality under extreme conditions, making it a great choice for automotive and outdoor applications.

With 3.5 KB of flash memory, 128 bytes of EEPROM, and 256 bytes of RAM, this MCU provides ample space for application code and data storage. Its self-programmable under software control feature allows for firmware updates in the field, enhancing the product's longevity and adaptability.

Key Features:

• CPU Speed: Up to 20 MIPS performance, allowing for quick processing of instructions and efficient operation.
• I/O Pins: 12 versatile I/O pins which can be configured for various functions, providing flexibility in interfacing with other devices and peripherals.
• Timers: Multiple timers, including a 16-bit timer, for precise event scheduling and time-sensitive tasks.
• Analog-to-Digital Converter (ADC): A 10-bit ADC with up to 11 channels, enabling the microcontroller to interface with analog sensors and convert their readings to digital values.
• Communication Peripherals: Integrated USART, SPI, and I2C modules for serial communication with other microcontrollers, sensors, and modules.
• Enhanced PWM Outputs: Provides improved control for power management and motor control applications.
• Comprehensive Interrupt System: With an extensive interrupt system, the PIC16F1503-E/MG can handle multiple sources of events with minimal CPU overhead.
• Low Power Features: Power-saving modes like Idle and Sleep ensure energy efficiency for battery-powered applications.

The PIC16F1503-E/MG by Microchip Technology is not just a microcontroller; it's a compact solution for innovators looking to create smart, connected, and efficient systems. Its robust design and comprehensive feature set make it a go-to choice for designers seeking a reliable and cost-effective MCU solution.
