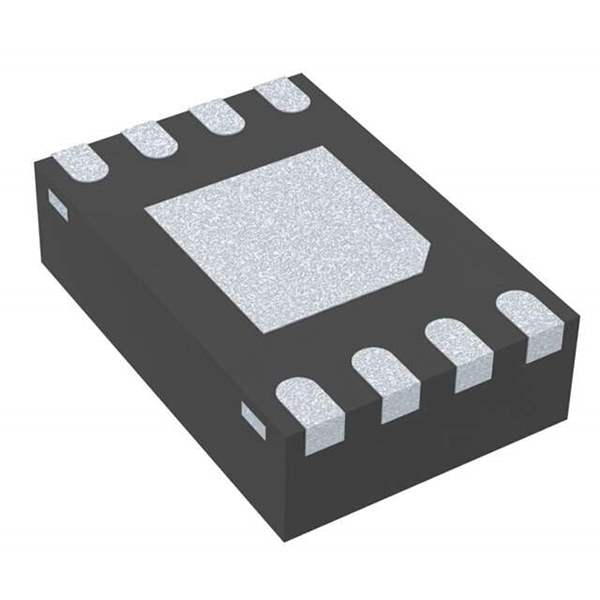

Microchip Technology's PIC12F508-I/MC Microcontroller

The PIC12F508-I/MC is a versatile 8-bit microcontroller from Microchip Technology, designed for embedded applications requiring a compact and power-efficient solution. As part of the PIC12F series, this microcontroller is perfect for a wide range of applications, including industrial, automotive, consumer electronics, and more.

Featuring a high-performance RISC CPU, the PIC12F508-I/MC offers a maximum speed of 20 MHz and includes 768 bytes of flash memory for program storage. Its architecture is optimized for low power consumption, with features such as power-saving sleep mode, making it ideal for battery-powered or power-sensitive applications.

The device comes with 25 bytes of RAM and 6 I/O pins, allowing it to handle a variety of control tasks and interface with sensors, actuators, and other peripheral devices. The I/O pins are highly configurable, providing options such as pull-up resistors, open-drain outputs, and PWM outputs, which adds to the flexibility of the microcontroller in different application scenarios.

For enhanced reliability and functionality, the PIC12F508-I/MC includes an on-chip 4 MHz oscillator, watchdog timer, and a programmable code protection feature. These built-in components help to reduce external component count and system costs, as well as improve system robustness.

Programming and debugging the microcontroller is straightforward, thanks to the integrated In-Circuit Serial Programming™ (ICSP™) technology. This allows developers to program the device in the final product, facilitating updates and field programming with minimal effort.

Microchip Technology's PIC12F508-I/MC comes in an 8-pin SOIC package, which is not only space-saving but also suitable for automated assembly processes, making it a practical choice for high-volume production. Its extended operating temperature range of -40°C to +85°C ensures reliable performance in harsh environments.

In summary, the PIC12F508-I/MC microcontroller is a highly capable, cost-effective solution for designers who require a small form factor, low power consumption, and a rich set of features to bring their innovative ideas to life.
