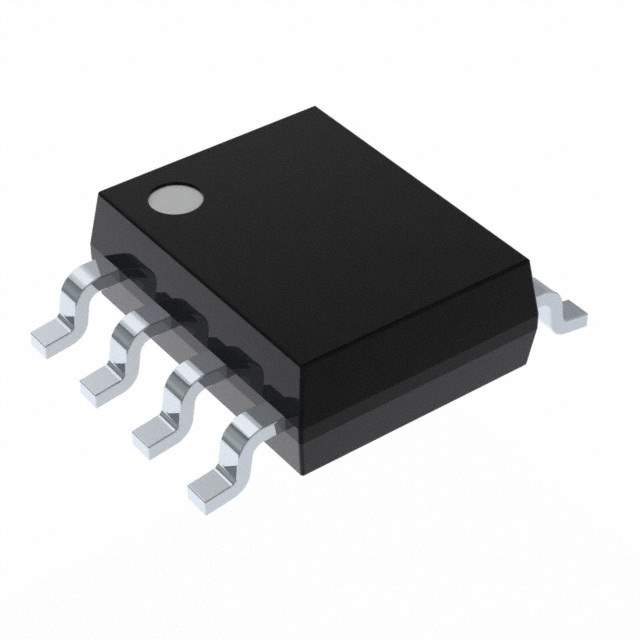

Microchip Technology PIC12C509-04/SM Microcontroller

The PIC12C509-04/SM is a highly versatile and powerful microcontroller designed by Microchip Technology, which is renowned for its compact, feature-rich, and energy-efficient microcontrollers. This particular model is part of the PIC12C family and is well-suited for a wide range of applications in the consumer, automotive, and industrial markets due to its small form factor and robust capabilities.

The PIC12C509-04/SM microcontroller comes in an 8-pin small-outline (SM) package, which allows for a minimal footprint on printed circuit boards (PCBs), making it an ideal choice for space-constrained applications. It operates at a nominal frequency of 4 MHz, providing a good balance between power consumption and processing speed.

Key Features:

• EPROM Memory: This device includes a built-in electrically programmable read-only memory (EPROM), which makes it possible to program and reprogram the microcontroller as needed for prototyping and small production runs.
• I/O Ports: The PIC12C509-04/SM offers a range of input/output options despite its small size, with General Purpose I/O (GPIO) pins that can be configured for various interfacing functions.
• Integrated Oscillator: An internal oscillator reduces the need for external clock components, thereby simplifying the design and reducing the overall bill of materials.
• Low Power Consumption: The device is designed for low power operation, which is critical for battery-powered and portable applications, where extended operational life is essential.
• Watchdog Timer: The built-in watchdog timer helps in maintaining system integrity by resetting the microcontroller in case of software anomalies or malfunctions.

The PIC12C509-04/SM also features a wide operating voltage range, which makes it adaptable to different power supply conditions. Its robustness is further enhanced by its ability to operate across a broad temperature range, ensuring reliability in harsh environments.

Whether you are developing a simple consumer gadget, a sophisticated automotive sensor, or an industrial control system, the PIC12C509-04/SM microcontroller offers a compact, cost-effective solution with the quality and support expected from Microchip Technology.
