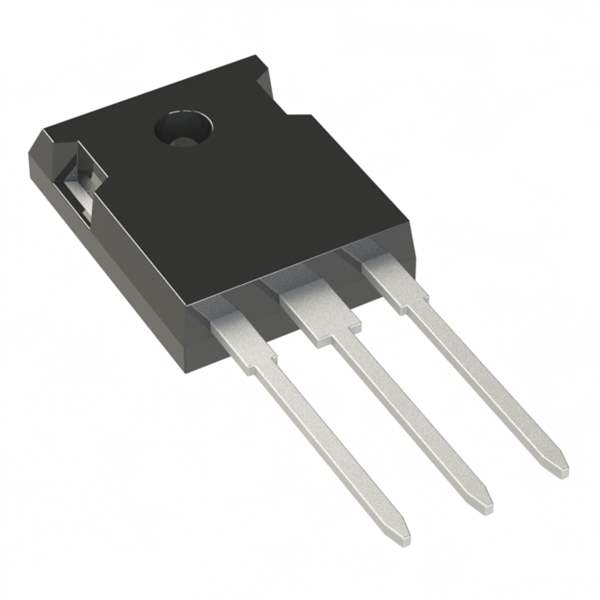

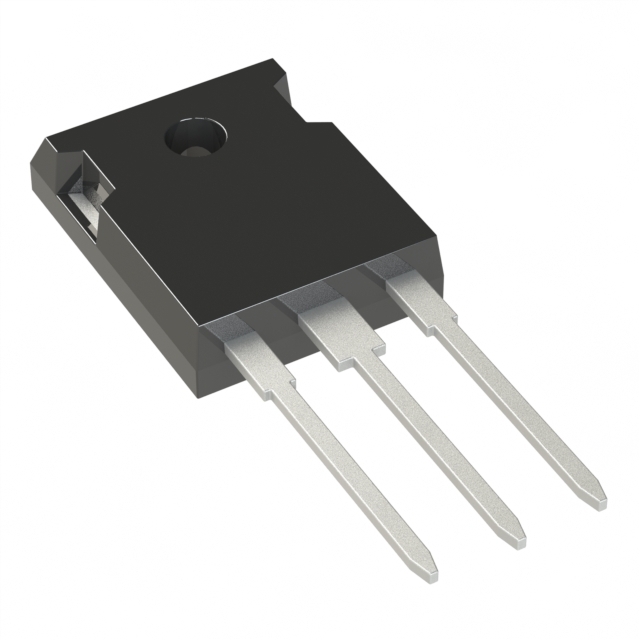

MSC750SMA170B Microchip Technology – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

MSC750SMA170B

Part No MSC750SMA170B
Manufacturer Microchip Technology
Catalog FETs - Single
Description SICFET N-CH 1700V 7A TO247-3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor ProductsTransistorsFETs, MOSFETsSingle FETs, MOSFETs
Mfr Microchip Technology
Packaging Tube
Part Status Active
FET Type N-Channel
Technology SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) 1700 V
Current - Continuous Drain (Id) @ 25°C 7A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 20V
Rds On (Max) @ Id, Vgs 940mOhm @ 2.5A, 20V
Vgs(th) (Max) @ Id 3.25V @ 100μA (Typ)
Gate Charge (Qg) (Max) @ Vgs 11 nC @ 20 V
Vgs (Max) +23V, -10V
Input Capacitance (Ciss) (Max) @ Vds 184 pF @ 1360 V
Power Dissipation (Max) 68W (Tc)
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Supplier Device Package TO-247-3
Package / Case TO-247-3
Base Product Number MSC750
Ultra Librarian 3D Model Ultra Librarian MSC750SMA170B CAD Model
