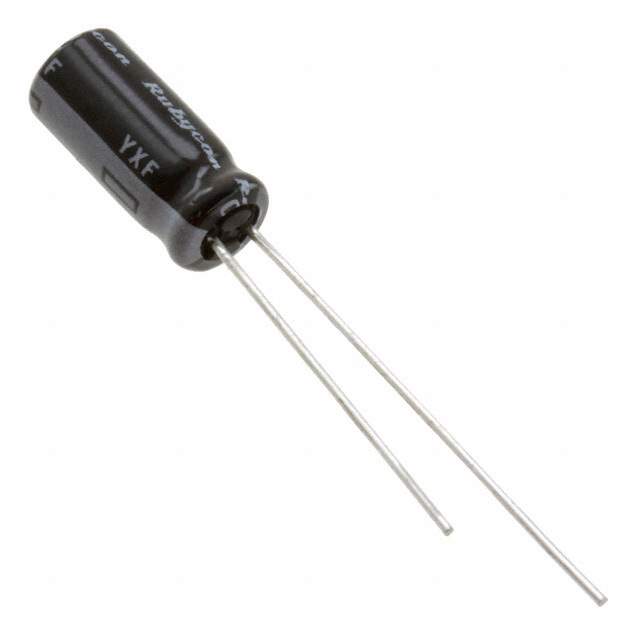

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXF
Package Bulk
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 82.5 mA @ 120 Hz
Ripple Current @ High Frequency 150 mA @ 100 kHz
Impedance 900 mOhms
Lead Spacing 0.079" (2.00mm)
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Other Names 1189-1853,50YXF22MEFC5X11
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307292-50YXF22MEFC5X11
Ultra Librarian 3D Model Ultra Librarian 50YXF22MEFC5X11 CAD Model

Description

The Rubycon 1307292-50YXF22MEFC5X11 is an Aluminum Electrolytic Capacitor from the YXF series designed for general-purpose applications.

  • Capacitance: 22 µF
  • Voltage Rating: 50 V
  • Tolerance: ±20%
  • Impedance: 900 mOhms
  • Lifetime: 5000 hours @ 105°C
  • Mounting: Through-hole mountable
  • Package: Radial, can
  • Standard Package: 3,000
  • Dimensions: 0.197" Dia (5.00mm)
  • Operating Temperature Range: -40°C to 105°C
