Products specifications

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Microchip Technology
Package Tube
Diode Configuration 2 Independent
Technology SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) (per Diode) 100A (DC)
Voltage - Forward (Vf) (Max) @ If 1.8 V @ 100 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 400 µA @ 1200 V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Type Chassis Mount
Package / Case SOT-227-4, miniBLOC
Supplier Device Package SOT-227 (ISOTOP®)
Base Product Number MSC2X101
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1350255-MSC2X101SDA120J
Ultra Librarian 3D Model Ultra Librarian MSC2X101SDA120J CAD Model

Description

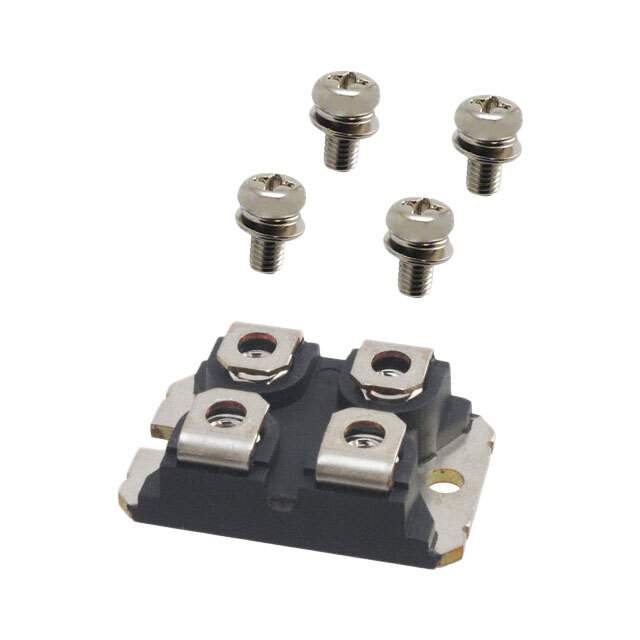

Microchip Technology's MSC2X101SDA120J: A Robust Silicon Carbide Power Module

The MSC2X101SDA120J is a state-of-the-art silicon carbide (SiC) power module designed and manufactured by Microchip Technology, a leader in microcontroller, mixed-signal, analog, and Flash-IP solutions. This power module is engineered to cater to the demanding needs of high-efficiency and high-power density applications across various industries, including renewable energy, automotive, transportation, and industrial power systems.

Exceptional Performance and Durability

At the heart of the MSC2X101SDA120J lies Microchip's advanced SiC technology, which provides superior thermal performance, higher switching frequencies, and reduced power losses compared to traditional silicon-based modules. The SiC material properties allow for operation at high junction temperatures, thus enabling more compact and lighter systems due to smaller heatsink requirements.

Key Features

  • High Voltage Rating: With a voltage rating of 1200V, this power module is well-suited for high-voltage applications, ensuring reliable operation and longevity even under strenuous conditions.
  • High Current Capacity: The MSC2X101SDA120J can handle a continuous current of 101A, making it capable of powering heavy-duty electrical systems without compromising performance.
  • Low On-Resistance: The low on-resistance (R<sub>DS(on)) characteristic of the module minimizes conduction losses, leading to improved overall efficiency in power conversion systems.
  • Robust Package: Encased in a rugged package, this power module is designed to withstand harsh environments and ensure reliable operation over its lifespan.

Applications

The versatility of the MSC2X101SDA120J allows it to be used in a wide array of applications, including but not limited to:

  • Electric Vehicle (EV) powertrains
  • Photovoltaic (PV) inverters
  • Uninterruptible Power Supplies (UPS)
  • Industrial motor drives
  • Switch-mode power supplies (SMPS)

With the MSC2X101SDA120J, Microchip Technology provides a robust and efficient power module solution that meets the challenging requirements of modern power electronic systems. Its exceptional performance, coupled with Microchip's commitment to quality and support, makes it an ideal choice for engineers and designers looking to enhance system reliability and efficiency.
