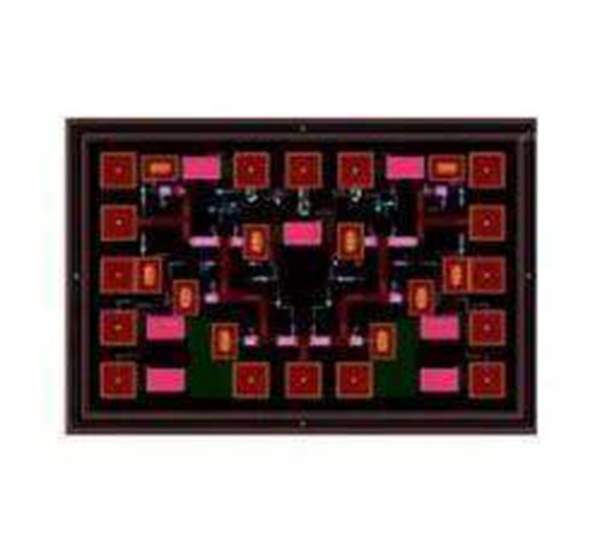

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Package Tray
Product Status Active
Frequency 0Hz ~ 26GHz
P1dB 22.5dBm
Gain 18dB
Noise Figure 2.5dB
RF Type General Purpose
Voltage - Supply 7V
Current - Supply 150mA
Test Frequency 0Hz ~ 6GHz
Grade -
Package / Case Die
Supplier Device Package Die
Ultra Librarian 3D Model Ultra Librarian MMA041AA CAD Model

Description

MMA041AA is a Gallium Arsenide (GaAs) monolithic microwave integrated circuit (MMIC) Pseudomorphic HighElectron Mobility Transistor (PHEMT) distributed amplifier die that operates between DC and 26 GHz. It is ideal for test instrumentation, defense, aerospace, and communications infrastructure applications. The amplifier provides a flat gain of 18.5 dB, 2 dB noise figure, and 22 dBm of output power at 1 dB gain compression, and 36 dBm output IP3. The MMA041AA amplifier features RF I/Os that are internally matched to 50Ω, which allows for easy integration into multi-chip modules (MCMs).
