Microchip Technology's MIC94060YC6: A High-Side Load Switch

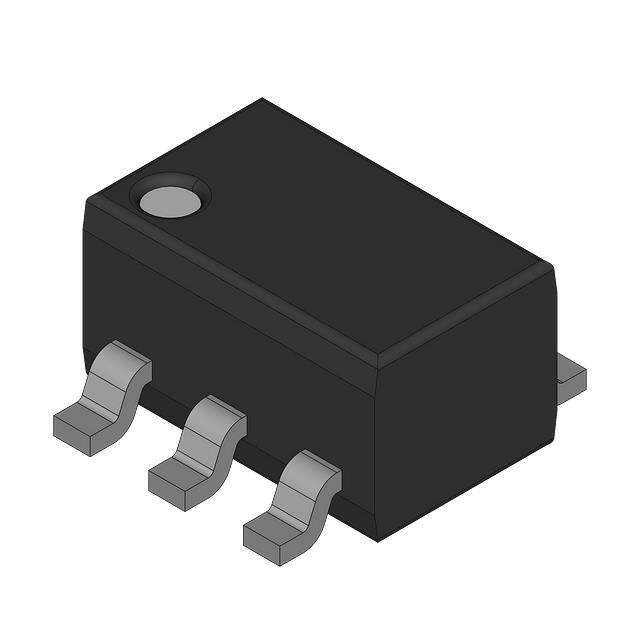

The MIC94060YC6 is a compact and efficient integrated circuit designed by Microchip Technology, tailored for high-side load switching applications. This p-channel MOSFET load switch is part of the MIC94060 series and comes in a tiny 6-pin SC-70 package, making it an ideal solution for space-constrained designs.

With an input voltage range of 1.8V to 5.5V, the MIC94060YC6 is versatile and can be used in a variety of portable electronic devices, such as smartphones, tablets, and other battery-operated gadgets. Its low on-resistance (typically 65mΩ) ensures minimal voltage drop and power loss, which is crucial for maintaining efficiency in power-sensitive applications.

The device features a built-in level shift which allows for logic-level control, meaning that it can be turned on or off with a logic signal from a microcontroller, regardless of the load's supply voltage. This characteristic simplifies interfacing with other components in a system and allows for easy integration into a wide range of designs.

Additional features of the MIC94060YC6 include a fast transient response and thermal shutdown protection, which enhances system reliability by preventing overheating. The load switch also supports a continuous current of up to 2A, making it capable of handling moderate power loads without the need for heat sinks or other thermal management tools.

The MIC94060YC6 offers a controlled turn-on functionality, which reduces inrush current and minimizes the risk of voltage droop on the power supply rail. This is particularly important for systems with multiple loads or sensitive components that require a stable power supply.

In summary, the MIC94060YC6 from Microchip Technology is a highly reliable and efficient solution for power distribution and management in portable electronic devices. Its low on-resistance, compact form factor, and ease of use make it an excellent choice for designers looking to optimize their power management systems.
