The MIC2788-XYMT-EV is a high-performance, dual-channel push-button reset IC developed by Microchip Technology, designed to provide reliable system reset functionality with a multitude of configuration options. This versatile device is an essential component for various applications, including portable electronics, computing devices, and industrial systems where precise and dependable reset control is critical.

Key Features

• Dual-Channel: The MIC2788-XYMT-EV features two independently programmable channels, allowing for simultaneous monitoring and control of multiple voltage rails or systems.
• Adjustable Timing: Users can configure the reset timeout periods, ensuring that the device can be tailored to specific system requirements.
• Manual Reset Input: A dedicated manual reset input allows for a system reset to be triggered with an external push-button, providing an additional layer of control.
• Active-Low Reset: The active-low reset outputs ensure compatibility with a wide range of microcontrollers and other digital circuits.
• Low Quiescent Current: Designed for energy-sensitive applications, the MIC2788-XYMT-EV maintains a low quiescent current, minimizing power consumption when the system is in standby.

Applications

The flexibility and reliability of the MIC2788-XYMT-EV make it suitable for a broad spectrum of applications, including:

• Smartphones and Tablets
• Notebooks and Netbooks
• Portable Media Players
• GPS Devices
• Industrial Control Systems

Technical Specifications

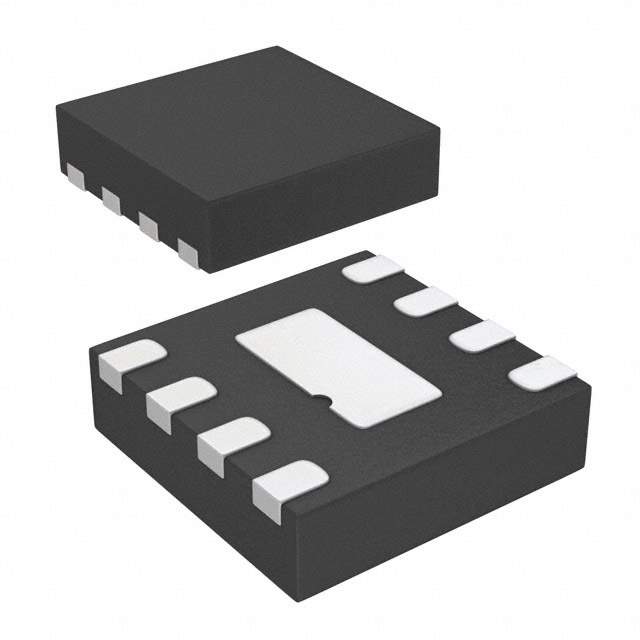

The MIC2788-XYMT-EV operates over a wide voltage range and is housed in a compact, lead-free 8-pin TDFN package. It features built-in debounce circuitry to prevent spurious resets due to mechanical bounce in push-button switches. The device also includes over-temperature protection, ensuring reliable operation under varying environmental conditions.

Ordering and Availability

The MIC2788-XYMT-EV is available for order through Microchip Technology's direct sales channels and authorized distributors. Detailed documentation, including datasheets, user guides, and application notes, can be accessed online to support design integration and deployment.
