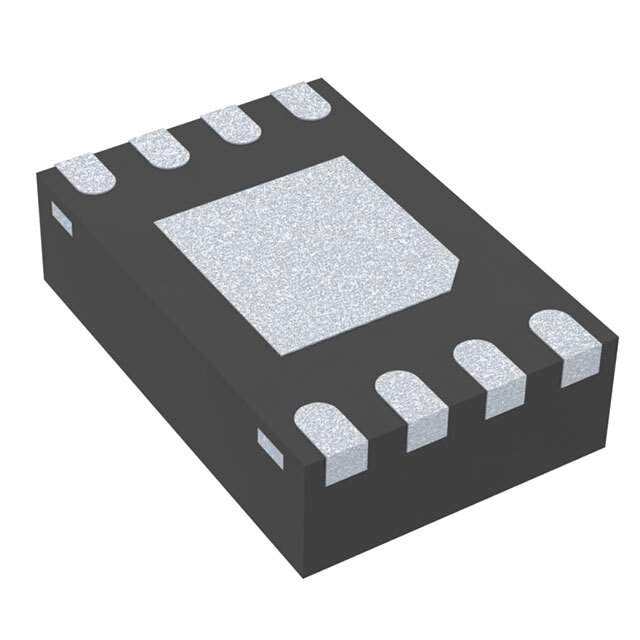

Microchip Technology MCP4801-E/MC Digital-to-Analog Converter

The MCP4801-E/MC from Microchip Technology is a highly integrated digital-to-analog converter (DAC) that offers a compact and efficient solution for converting digital signals into a precise analog output. This 8-bit DAC features an on-board precision voltage reference, a high-speed SPI interface, and is housed in a small 8-pin MSOP package, making it ideal for space-constrained applications.

Key Features:

• Resolution: The MCP4801-E/MC boasts an 8-bit resolution, providing fine granularity for analog signal generation.
• On-Board Voltage Reference: With an integrated 2.048V voltage reference, the DAC ensures stable and accurate output without the need for external components.
• Interface: The high-speed SPI interface allows for seamless communication with microcontrollers and digital systems, ensuring rapid data transfer and reduced latency.
• Package: Encased in a Micro Small Outline Package (MSOP), the device saves on board space and is suitable for compact designs.
• Single Supply Operation: Operating from a single 2.7V to 5.5V power supply, the MCP4801-E/MC is versatile and can be used in various power environments.
• Extended Temperature Range: This DAC is designed to perform reliably across a broad temperature range from -40°C to +125°C, accommodating industrial and automotive applications.

Applications:

The MCP4801-E/MC is well-suited for a wide range of applications where precise digital-to-analog conversion is required. This includes:

• Portable instrumentation
• Data acquisition systems
• Analog output drivers for control systems
• Programmable voltage and current sources
• Battery-operated devices

In summary, the MCP4801-E/MC from Microchip Technology is a versatile and reliable DAC option for designers looking to incorporate precise analog outputs in their digital systems. Its small footprint, integrated features, and wide operating temperature range make it an excellent choice for a variety of applications.
