Microchip Technology MCP4451-503E/ML Digital Potentiometer

The MCP4451-503E/ML is a quad-channel, 7-bit (128 wiper steps) digital potentiometer designed by Microchip Technology, an industry leader in microcontroller, mixed-signal, analog, and Flash-IP solutions. This digital potentiometer offers a compact and precise way to control and calibrate voltage, current, and signal levels in a variety of electronic applications.

Each channel of the MCP4451-503E/ML has a resistance value of 50 kΩ and is capable of operating within a voltage range of 2.7V to 5.5V, making it suitable for low-power applications. The device is controlled via a user-friendly I²C interface, allowing for easy integration into existing systems.

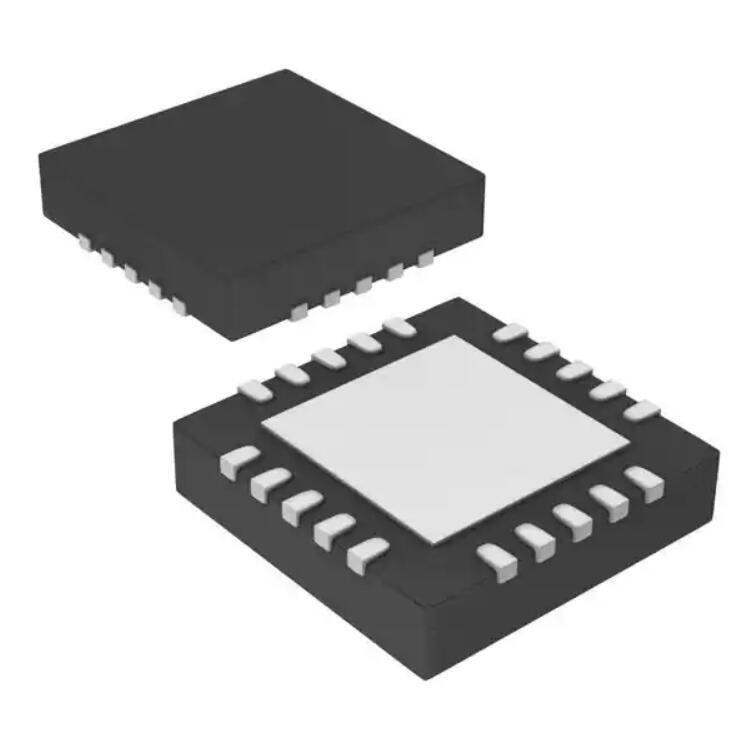

The robust MCP4451-503E/ML is housed in a 20-lead QFN (ML) package, ensuring a small footprint that is ideal for space-constrained applications. This digital potentiometer is designed with non-volatile memory, ensuring that the wiper settings are maintained even after power is removed. This feature is particularly useful in applications that require precise calibration or settings retention across power cycles.

With an extended temperature range of -40°C to +125°C, the MCP4451-503E/ML is suitable for use in harsh environments, making it an excellent choice for automotive, industrial, and consumer electronics. Additionally, the device features a low wiper resistance, which translates to lower signal distortion and better performance.

The MCP4451-503E/ML also includes features such as wiper lock technology to prevent accidental changes to the wiper position, ensuring stable and reliable operation. This digital potentiometer is perfect for applications like adjustable power supplies, LCD screen calibration, and audio control where precision and reliability are paramount.

Overall, the MCP4451-503E/ML from Microchip Technology is a versatile and reliable solution for designers looking to add adjustable resistance capabilities to their projects with minimal footprint and power consumption.
