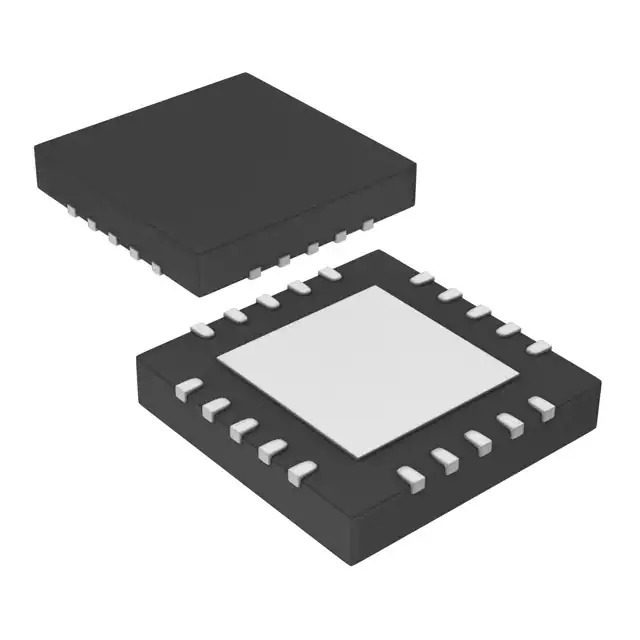

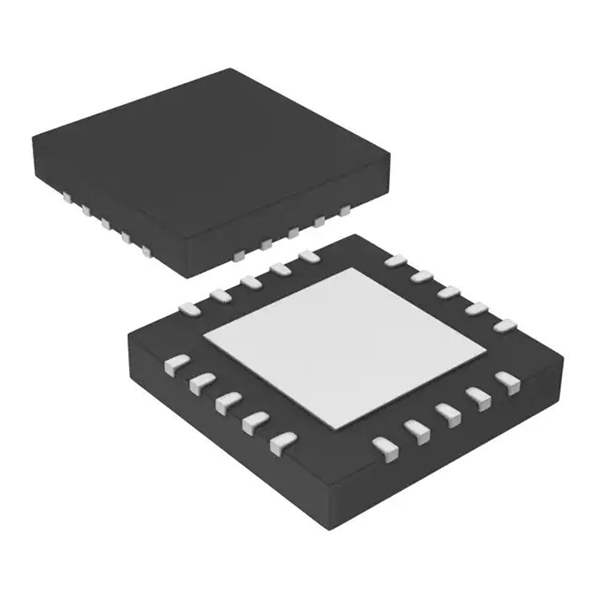

Microchip Technology's MCP41HV51-502E/MQ Digital Potentiometer

The MCP41HV51-502E/MQ is a high-voltage, digital potentiometer designed by Microchip Technology, offering a versatile solution for applications requiring variable resistance settings controlled via a digital interface. This digital potentiometer is part of Microchip's MCP41HVX1 series, which is renowned for its precision and reliability in various electronic circuits.

Key Features:

• High-Voltage Operation: The MCP41HV51-502E/MQ supports a wide voltage range, making it suitable for systems that operate at higher voltages. It can handle up to 36V for the potentiometer terminal voltage and up to 10V for the analog supply voltage.
• Resistance Options: This device offers a resistance value of 5kΩ, providing a suitable range for various applications that require fine-tuning of resistance levels.
• Multiple Terminal Configurations: The digital potentiometer includes an array of terminal configurations, including the resistor network's high (RH), wiper (RW), and low (RL) terminals, which can be used in a variety of configurations such as rheostat mode or voltage divider.
• Non-Volatile Memory: It incorporates non-volatile memory (EEPROM) to store the wiper position, ensuring that the last position is retained even after the device is powered down.
• Serial Interface: Communication with the MCP41HV51-502E/MQ is achieved through a standard SPI (Serial Peripheral Interface), allowing for easy integration into existing digital systems.
• Extended Temperature Range: The device is designed to operate within an extended temperature range from -40°C to +125°C, which makes it perfect for harsh environments.

Applications:

The MCP41HV51-502E/MQ digital potentiometer is ideal for various applications, including:

• Automated adjustments in consumer electronics
• Calibration and control systems in industrial equipment
• Programmable power supplies and voltage dividers
• Audio equipment for volume and tone control
• Automotive electronics for sensor calibration

With its robust design and flexible features, the MCP41HV51-502E/MQ from Microchip Technology stands out as a high-performance component for designers seeking to incorporate digital potentiometer functionality into their projects.
