Microchip Technology MCP41HV51-104E/MQ Digital Potentiometer

The MCP41HV51-104E/MQ is a high-voltage, digital potentiometer designed by Microchip Technology to offer precise resistance tuning in a compact and versatile package. This digital potentiometer is part of Microchip's MCP41HVX1 series, which is renowned for its high-performance and reliability in various electronic applications. The device is particularly suitable for applications requiring low-temporal noise, including audio equipment, industrial control systems, and automated adjustments in a wide range of electronic circuits.

This digital rheostat integrates a 7-bit resistor network offering 129 resistive steps, providing designers with a fine level of control over the resistance settings. With a resistance value of 100kΩ, the MCP41HV51-104E/MQ allows for smooth transitions between steps, ensuring stable operation and minimizing the potential for signal distortion or abrupt changes in circuit behavior.

The MCP41HV51-104E/MQ operates over a wide voltage range, with a maximum analog voltage of 36V. This high-voltage capability makes it an excellent choice for systems that require a higher range of operation without sacrificing performance. The potentiometer also features a Serial Peripheral Interface (SPI) that enables easy communication with microcontrollers and other digital systems, allowing for straightforward integration into complex designs.

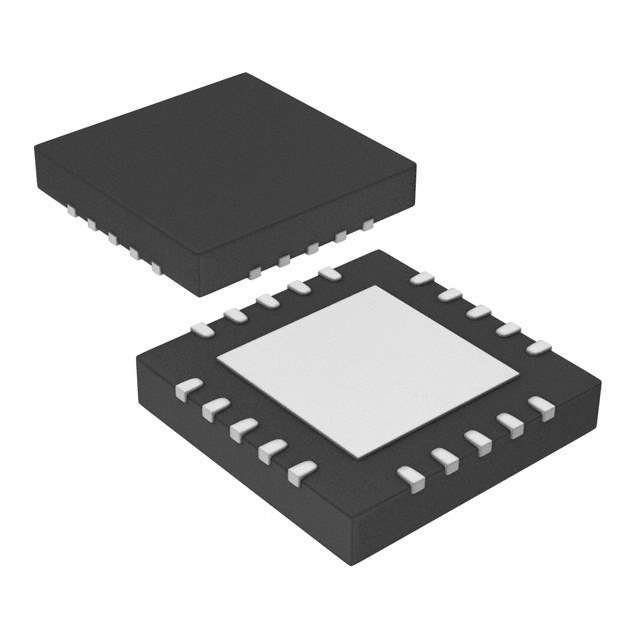

Encased in a 20-lead QFN package, the MCP41HV51-104E/MQ is designed for surface mount technology (SMT), which is beneficial for modern, space-constrained electronic assemblies. The compact form factor contributes to a reduction in overall board space, while providing the necessary functionality for precision control.

Additional features of the MCP41HV51-104E/MQ include non-volatile memory for storing the wiper position, which ensures that the device maintains the last position after a power cycle. This is particularly useful in applications that require a specific resistance setting upon startup. Furthermore, the digital potentiometer is equipped with a WiperLock™ Technology that allows users to lock the wiper position, preventing unintended adjustments.

Overall, the MCP41HV51-104E/MQ from Microchip Technology is a robust and reliable solution for designers looking to implement precise resistance tuning in their high-voltage applications.
