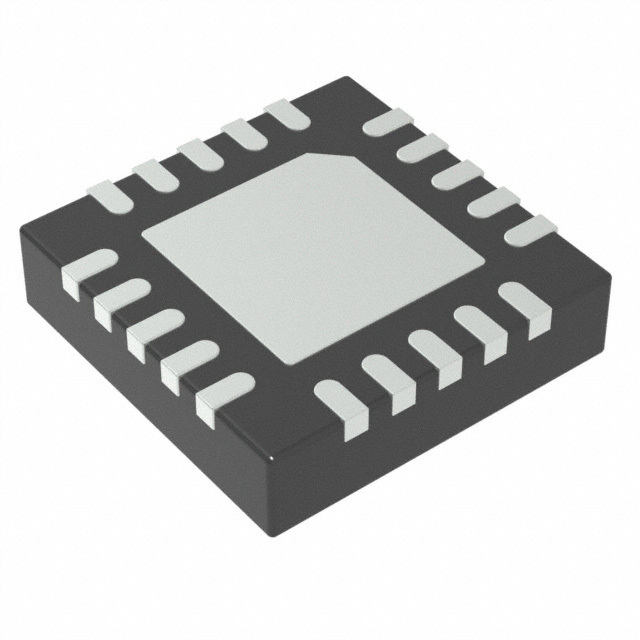

Microchip Technology MCP3561RT-E/NC

The MCP3561RT-E/NC from Microchip Technology is a highly precise, single-channel, 24-bit delta-sigma analog-to-digital converter (ADC) that offers a remarkable balance of performance, power efficiency, and flexibility, making it an ideal choice for a wide array of applications including industrial monitoring, medical instrumentation, and consumer electronics.

Key Features

• Resolution: The device boasts a 24-bit resolution, ensuring high-precision measurements which are critical for sensitive applications.
• Sample Rate: With a programmable data rate up to 153.6 kSPS, the MCP3561RT-E/NC can accommodate both high-speed and low-speed signals, catering to diverse system requirements.
• Low Power Consumption: It is designed for power-sensitive applications, offering a low current consumption that extends the life of battery-operated devices.
• Extended Temperature Range: The device operates over an industrial temperature range of -40°C to +125°C, ensuring reliability in harsh environments.
• Programmable Gain Amplifier: The integrated programmable gain amplifier (PGA) allows for signal amplification up to 32 times, enhancing the ADC performance for low-amplitude signals.
• Internal Oscillator: An on-chip oscillator eliminates the need for external components, reducing system complexity and cost.
• Interface: The device supports SPI serial interface, facilitating easy integration with most microcontrollers.

Applications

The MCP3561RT-E/NC is versatile and can be used in a variety of applications, such as:

• Industrial automation and process control
• Portable instrumentation and battery-operated devices
• Medical monitoring systems
• Smart sensors and IoT devices
• Energy metering and smart grid infrastructure

With its precision measurement capabilities, low power consumption, and robust design, the MCP3561RT-E/NC from Microchip Technology is an excellent choice for designers looking to enhance the performance and efficiency of their systems.
