Microchip Technology's Product M2S060-1FCSG325 Overview

The M2S060-1FCSG325 is a state-of-the-art field-programmable gate array (FPGA) product from Microchip Technology, designed to deliver high performance and reliability for a wide range of applications. This advanced semiconductor device is part of Microchip's SmartFusion2 SoC FPGA family, which combines the flexibility of programmable logic with the power of a hardened microcontroller subsystem and high-speed serial communication interfaces.

Key Features

• Integrated ARM Cortex-M3 Processor: At the core of the M2S060-1FCSG325 is a 166 MHz ARM Cortex-M3 processor, providing robust computational capabilities along with a rich set of peripherals and an efficient 32-bit architecture.
• High-Density FPGA Fabric: The device boasts 60K logic elements (LEs), enabling the implementation of complex digital logic circuits and custom hardware accelerators.
• Advanced Security Features: With an emphasis on security, the product includes features such as secure boot, an integrated hardware random number generator, and a 256-bit AES encryption/decryption engine to protect intellectual property and data.
• High-Speed Serial Interfaces: The inclusion of high-speed serial interfaces such as PCI Express, Gigabit Ethernet, and SERDES lanes supports fast data transfer and connectivity options for modern applications.
• Low Power Consumption: Designed for power-sensitive applications, the M2S060-1FCSG325 is engineered to operate efficiently, reducing overall power consumption.

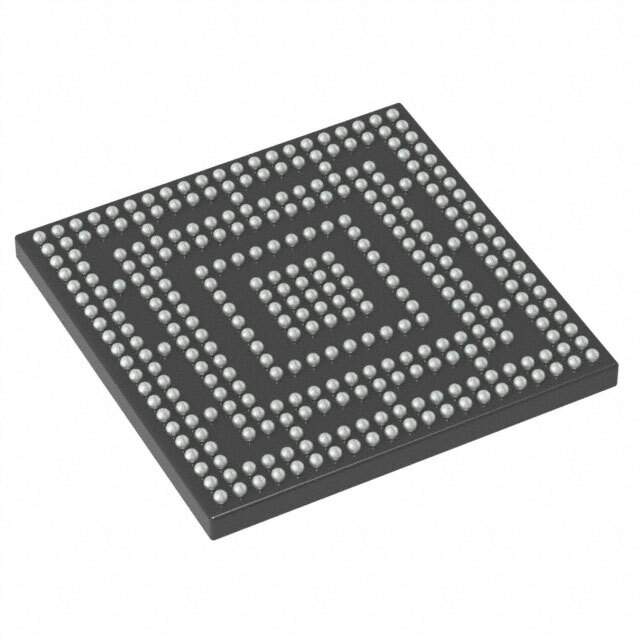

• 325-Ball Fine-Pitch BGA Package: The device is housed in a compact 325-ball Fine Pitch Ball Grid Array (FBGA) package, which allows for a smaller footprint on the printed circuit board (PCB).

Applications

The versatility of the M2S060-1FCSG325 makes it suitable for a broad spectrum of applications, including but not limited to industrial control systems, automotive electronics, communication infrastructure, and defense equipment. Its robust processing capabilities and programmable logic enable designers to tailor the FPGA to their specific needs, whether it's for processing-intensive tasks or for interfacing with various digital and analog systems.

Conclusion

The M2S060-1FCSG325 from Microchip Technology represents a powerful and flexible solution for designers looking to integrate an FPGA with a strong emphasis on security, performance, and low power consumption. Its comprehensive feature set and compact form factor make it an ideal choice for a multitude of advanced electronic applications.
