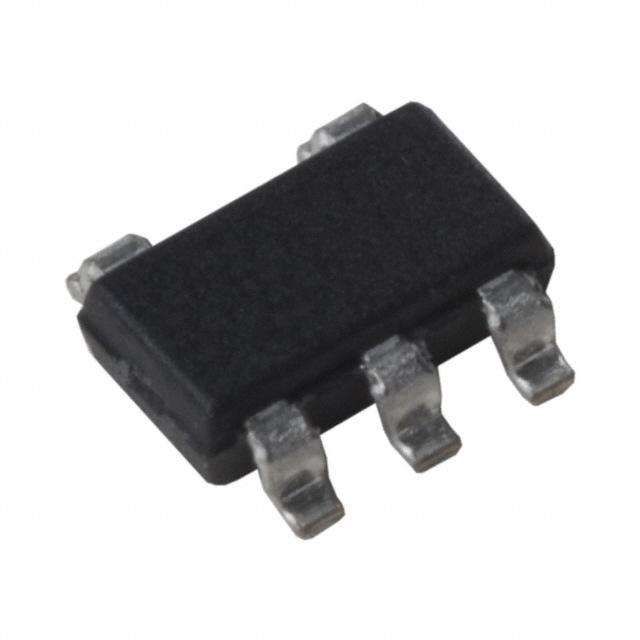

The LMC7101BYM5-TR is a high-performance, low-voltage operational amplifier from Microchip Technology, designed to offer a blend of features that make it ideal for battery-powered applications and portable devices. This op-amp comes in a compact SOT-23-5 package, making it suitable for space-constrained applications.

Key Features

• Power Supply: The LMC7101BYM5-TR operates from a single supply voltage as low as 2.7V up to 15V, accommodating a broad range of applications from low-voltage battery-operated devices to more traditional electronic circuits.
• Low Power Consumption: With a quiescent current of just 0.85mA (typical), this operational amplifier is optimized for battery life, ensuring minimal power drain in sensitive applications.
• Rail-to-Rail Output: The rail-to-rail output swing provides increased dynamic range, which is especially beneficial when operating at lower supply voltages.
• High Gain Bandwidth: It features a gain bandwidth product of 1.1 MHz, allowing for ample bandwidth for a variety of signal processing tasks.
• Stable with Capacitive Loads: The LMC7101BYM5-TR is designed to be stable with capacitive loads up to 500 pF, making it versatile in various applications without the need for external compensation.

Applications

The operational amplifier is well-suited for a wide array of applications, including:

• Portable and battery-powered electronics
• Sensor amplifiers
• Active filters
• Medical instrumentation
• Analog signal conditioning
• General-purpose amplification

Quality and Reliability

Microchip Technology is known for its commitment to quality, and the LMC7101BYM5-TR is no exception. It is designed to meet rigorous industry standards, ensuring reliable performance in a wide range of environmental conditions. The "TR" designation in the part number indicates that the device is provided in tape and reel packaging, which is ideal for automated assembly processes.

With its combination of low power consumption, wide supply voltage range, and compact packaging, the LMC7101BYM5-TR operational amplifier is a versatile choice for designers looking to optimize their circuit designs without compromising on performance.
