Products specifications

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Microchip Technology
Series Military, MIL-PRF-19500/516
Package Bulk
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 22.8V
Voltage - Breakdown (Min) 28.5V
Voltage - Clamping (Max) @ Ipp 41.6V
Current - Peak Pulse (10/1000µs) 12A
Power - Peak Pulse 500W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case B, Axial
Supplier Device Package B, Axial
Standard Package 1 pcs
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 608710-JANS1N6117A
Ultra Librarian 3D Model Ultra Librarian JANS1N6117A CAD Model

Description

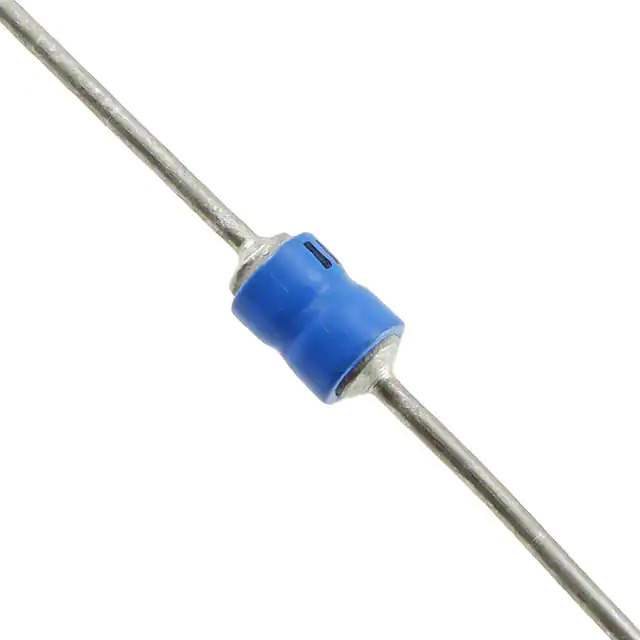

The JANS1N6117A is a high-quality, robust transient voltage suppressor (TVS) diode designed and manufactured by Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This product is specifically engineered to protect sensitive electronic equipment from voltage spikes and transients induced by lightning and other sudden voltage events.

Key Features

  • Voltage Range: The JANS1N6117A offers a standoff voltage range that is suitable for a variety of applications, ensuring that devices are protected from specific voltage transients.
  • High Reliability: This TVS diode is built to meet stringent quality standards, providing reliable performance in harsh environments and critical applications.
  • Hermetically Sealed: The device is hermetically sealed, which makes it impervious to moisture and other environmental conditions that could otherwise compromise its functionality.
  • High Surge Capability: With its excellent surge capability, the JANS1N6117A can absorb high transient currents without damage, ensuring the protection of the connected electronic components.
  • Fast Response Time: The diode reacts almost instantaneously to transient voltages, providing immediate protection to the circuitry it is defending.

Applications

The JANS1N6117A is suitable for a wide range of applications, particularly in areas where high reliability and robustness are paramount. Some of the typical applications include:

  • Aerospace and defense systems
  • Communication systems
  • Power supply protection
  • Industrial electronics
  • Medical equipment

Quality and Certification

Microchip Technology is committed to delivering high-quality products. The JANS1N6117A is manufactured in facilities that are certified to industry standards, ensuring that each diode meets the rigorous requirements of aerospace and military applications. This commitment to quality makes the JANS1N6117A an ideal choice for systems where failure is not an option.

For detailed specifications, application notes, and additional resources, interested customers are encouraged to visit Microchip Technology's official website or contact their customer service for personalized support.
