Products specifications

Categories Circuit Protection
Estimated Pruduction Lead Time 29 Weeks
Features 8.5V Clamp 120A Ipp Tvs Diode Through Hole DO-13 (DO-202AA)
Manufacturer Microchip Technology
Series Military, MIL-PRF-19500/500
Package Bulk
Operating Temperature Range -65°C ~ 175°C (TJ)
Mounting Through Hole
Package DO-13
Case / Package DO-13 (DO-202AA)
Family Name 1N5907
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 1086-15228, 1086-15228-MIL
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 922270-JAN1N5907
Ultra Librarian 3D Model Ultra Librarian JAN1N5907 CAD Model

Description

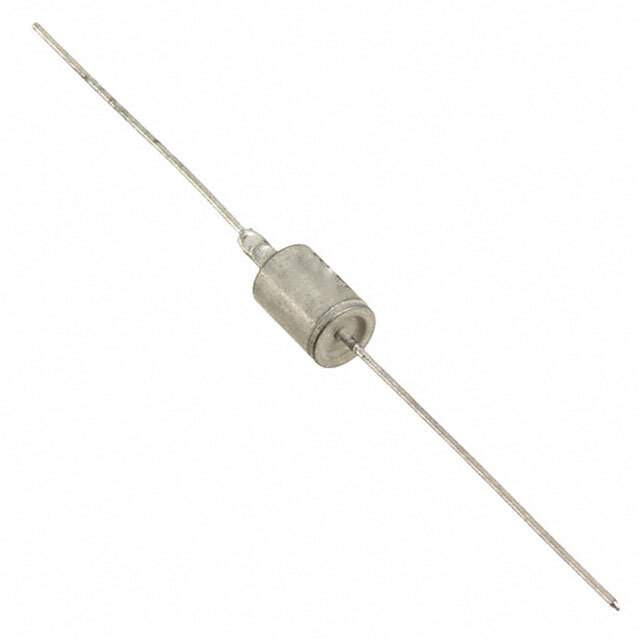

Microchip Technology's JAN1N5907 Diode

The JAN1N5907 is a high-reliability, current-limiting diode designed and manufactured by Microchip Technology, a leader in the semiconductor industry. This particular product is crafted to meet the stringent requirements of the aerospace and defense sectors, providing a robust solution for voltage regulation and current control applications.

Key Features

  • Voltage Range: The JAN1N5907 is capable of handling a wide range of voltages, making it versatile for various circuit designs.
  • High Reliability: As a part of the JAN (Joint Army/Navy) series, this diode is built to meet or exceed military specifications for electronic components, ensuring top-notch performance even under extreme conditions.
  • Current Limiting Capability: This feature is essential for protecting sensitive electronic components from current surges that can cause damage or reduce the lifespan of the product.
  • Hermetically Sealed: The diode is encapsulated in a hermetic seal, which protects it from environmental factors such as moisture and dust, contributing to its long-term reliability and stability.
  • Temperature Range: The JAN1N5907 operates effectively across a broad temperature range, making it suitable for applications that may experience fluctuating or extreme temperatures.

Applications

The JAN1N5907 is commonly used in power supply circuits, voltage regulators, and protection circuits. Its reliability and robustness make it an ideal choice for mission-critical applications in military and aerospace industries, where consistent performance and durability are non-negotiable.

Quality Assurance

Microchip Technology's commitment to quality is evident in the JAN1N5907 diode. Each unit undergoes rigorous testing to ensure it meets the high standards required for military and aerospace applications. Customers can trust that they are receiving a product that will perform reliably over time, even in the harshest environments.

Overall, the JAN1N5907 from Microchip Technology exemplifies the company's dedication to providing high-quality, dependable components for advanced electronic systems where failure is not an option.
